Gasoline Diesel Tanker Bottom Valve Mechanical Emergency Valve

Gasoline Diesel Tanker Bottom Valve Mechanical Emergency Valve

Gasoline Diesel Tanker Bottom Valve Mechanical Emergency Valve;Structure:Shutoff,Power:PneumaticMaterial:Stainless Steel,Media:Oil.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Shutoff
Pressure:Medium Pressure
Power:Pneumatic
Material:Stainless Steel
Temperature of Media:Normal Temperature
Media:Oil
Port Size:4''
Place of Origin:China (Mainland)
Model Number:SDHDV-100
Brand Name:EO
Application:tank truck

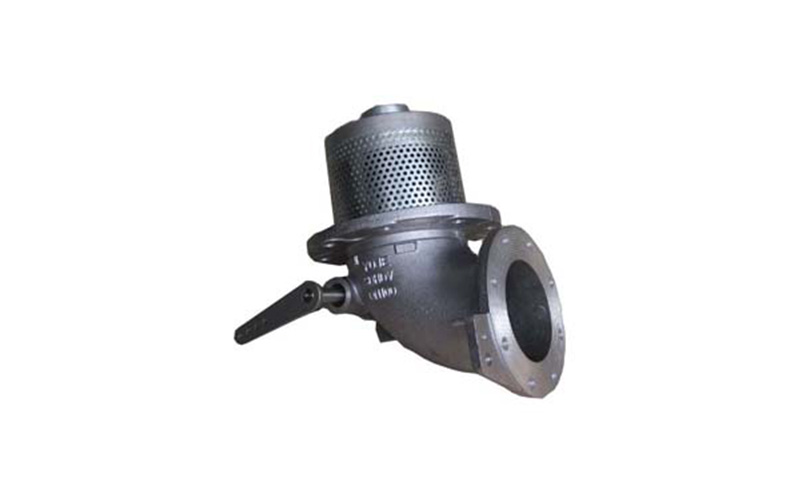

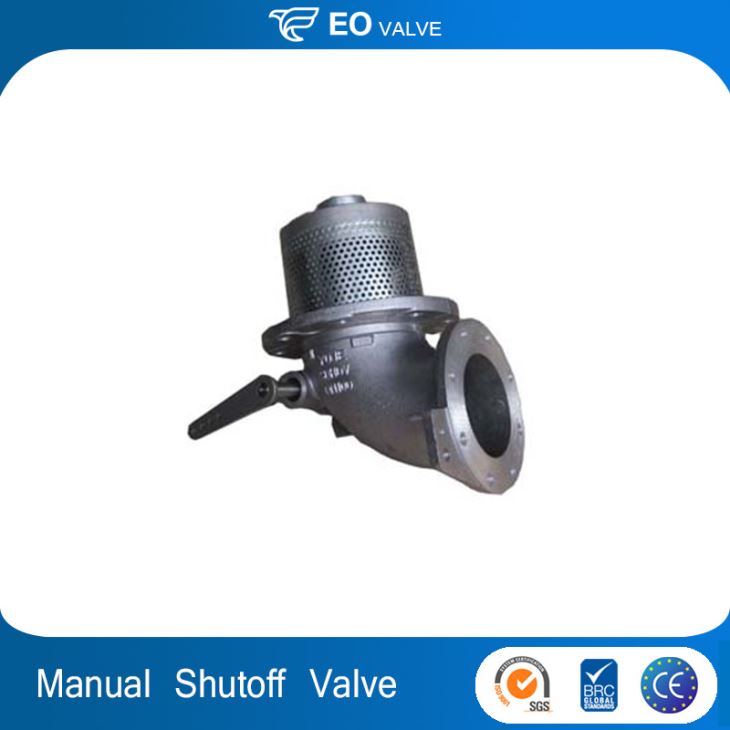

2.jpgHDV series emergency valve is installed at the bottom of tanker to connect with flange.

It has efficient design and realize the high flow speed,high fall head in the liquid pipe.

For that,it get the best profit. It can use manual and pneumatic controller to open the bottom valve.

The casting body is design to decease the weight and improve the fluidity.



Feature:

Improve the flow speed and adopt the easy,convenient structure

Easy install,can automatically cut off in emergency

Use the manual controller to open

Fit EN 13083 and flange TTMA


Parameter :
Size4"
Flow2500L/min
Working pressure0.6MPA
operate waypneumatic
Temperature-20 to 70 ℃
Connect wayflange
Mediumoil


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
