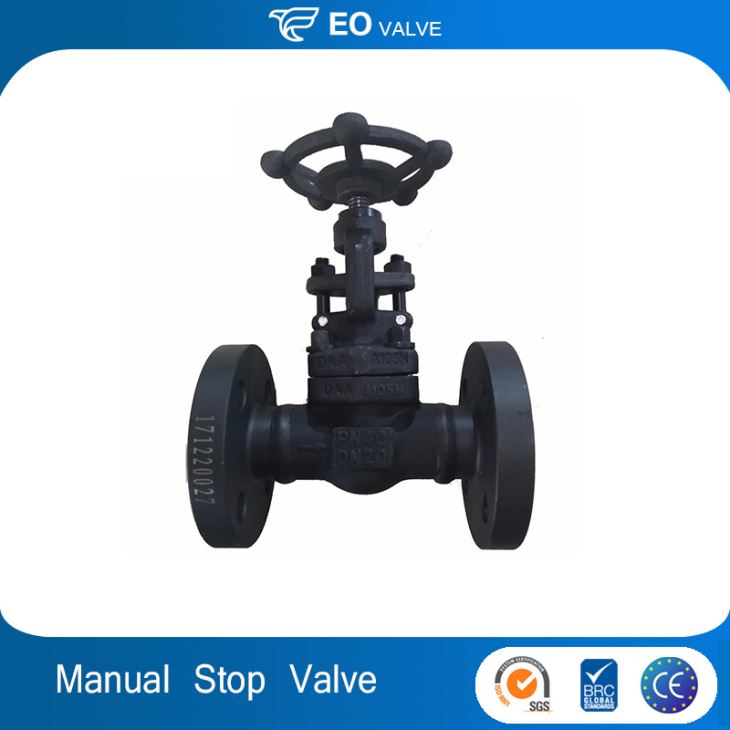

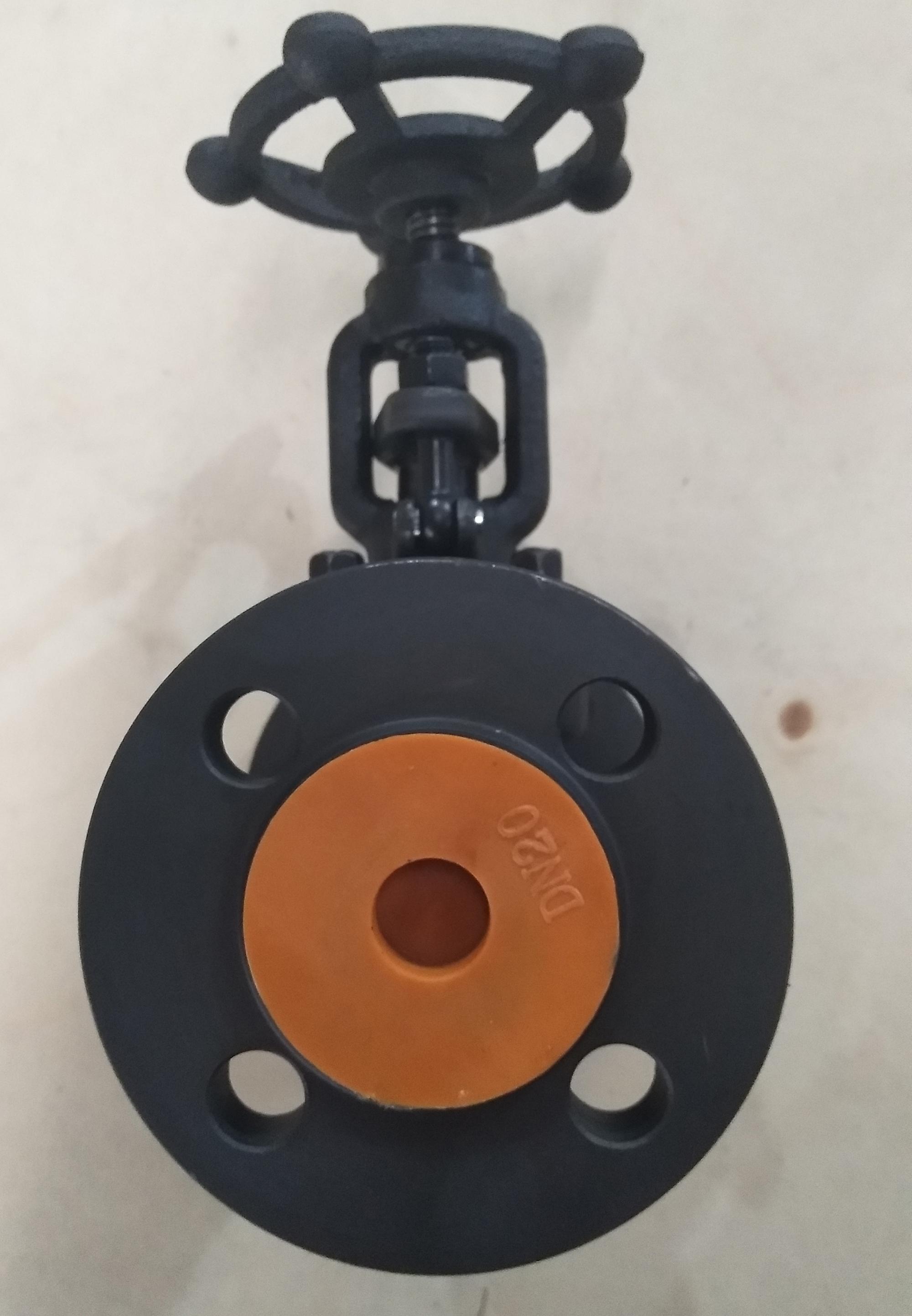

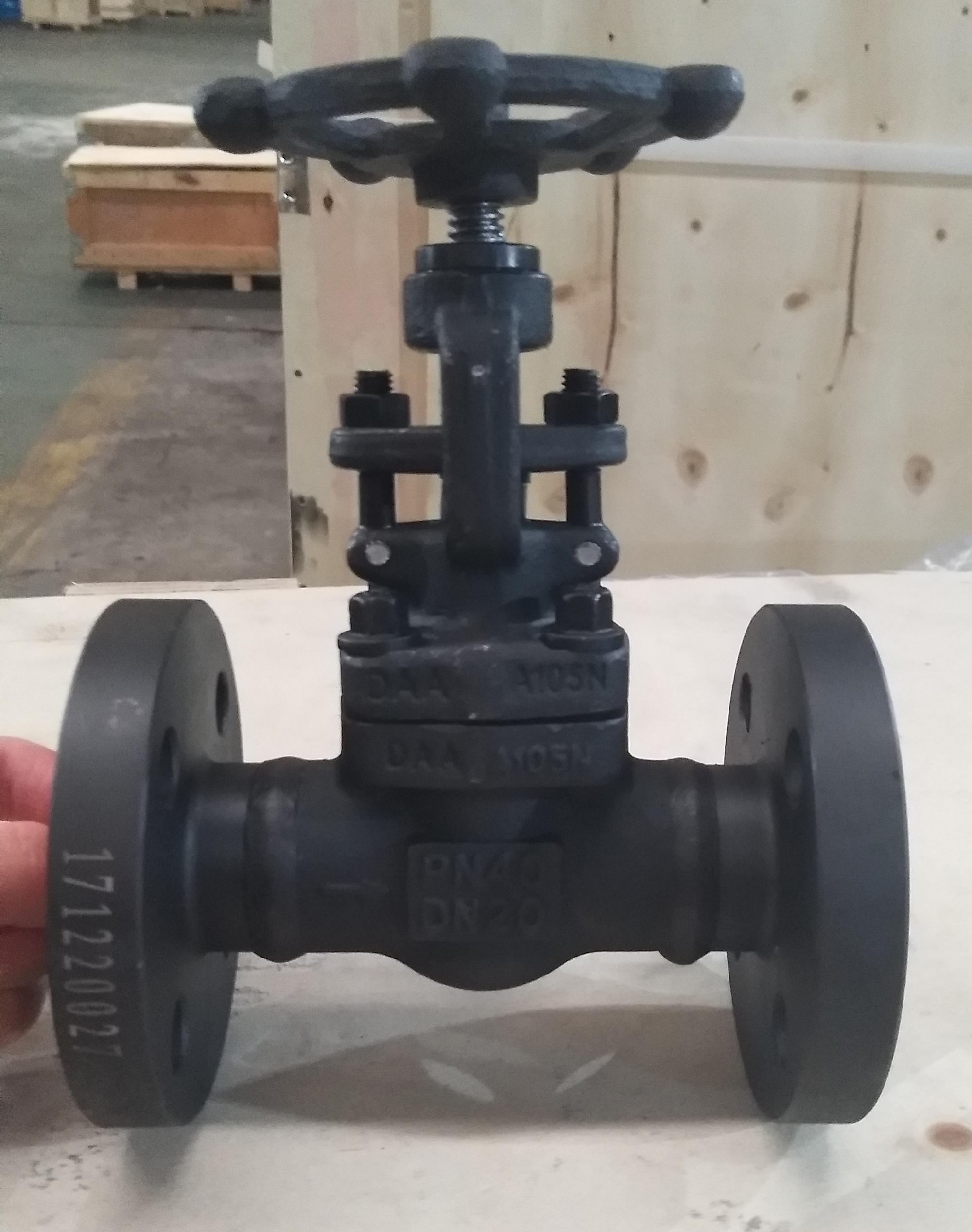

DN20 PN40 Steam Globe Valve
DN20 PN40 Steam Globe Valve;Pressure:Medium Pressure, PN40,Material:Forged,Media:Oil,Place of Origin:China (Mainland),Brand Name:EO,Connection:flanged, RF.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Stop |
| Pressure: | Medium Pressure, PN40 |
| Power: | Manual |
| Material: | Forged |
| Temperature of Media: | High Temperature |
| Media: | Oil |
| Port Size: | DN20 |
| Place of Origin: | China (Mainland) |
| Model Number: | J41H-40 |
| Brand Name: | EO |
| Application: | Industry |
| Product name: | Forged globe valve |
| Connection: | flanged, RF |
| Body material: | A105 |
| Medium: | Water Oil Gas |
| Seal test pressure: | 4.4Mpa |
| Shell test pressure: | 6.0Mpa |
| Back seat test: | 4.4Mpa |
| Color: | Black |
| Temperature: | -29℃~425℃ |
Materials for each parts:
| Parts Name | Description |
| Valve type | Forged flange globe valve |
| Connection flange | HG 20592 RF |
| Face to Face | GB/T12221 |
| Body material | A105 |
| Disc material | ANSI 420 |
| Stem material | 2CR13 |
| Bonnet material | A105 |
| Actuator | Handwheel |
Technical drawings of butterfly valve:
