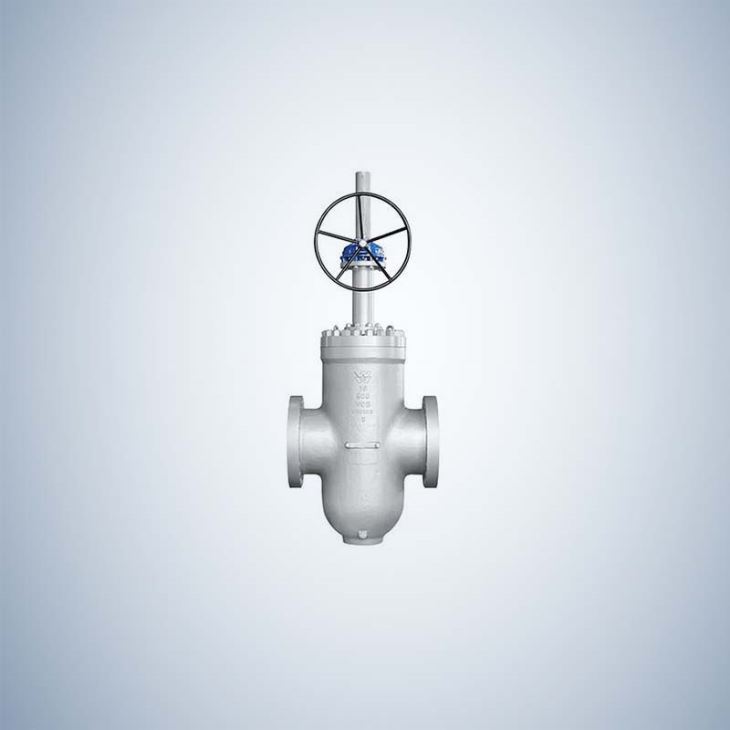

API 6D Standard Cast Steel WCB Bolted Bonnet Slab Gate Valve

API 6D Standard Cast Steel WCB Bolted Bonnet Slab Gate Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China api 6d standard cast steel wcb bolted bonnet slab gate valve, gate valve a216 wcb manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API 6D standard Cast......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China api 6d standard cast steel wcb bolted bonnet slab gate valve, gate valve a216 wcb manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API 6D standard Cast...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China api 6d standard cast steel wcb bolted bonnet slab gate valve, gate valve a216 wcb manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



API 6D Standard Cast Steel WCB Bolted Bonnet Slab Gate Valve,Manufactured By Professional Valve

Product Specifications :

STANDARDS:

DESIGN AND MANUFACTURE

API 6D

FACE TO FACE DIMENSIONS

API 6D

FLANGE ENDS DIMENSIONS

NPS 2"~24'"

NPS 26"~36"


ASME B16.5
ASME B16.47

BW ENDS DIMNSIONS

ASME B16.25

PRESSURE-TEMPERATURE RATINGS

ASME B16.34

NORMAL PRESSURE

CLASS 150~1500

NORMAL DIAMETER

NPS 2"~36"


Design Feature:

1. WEDGE TYPE:SINGLE WEDGE,SINGLE WEDGE WITH THROUGH CONDUIT,DOUBLE WEDGE WITH THROUGH CONDUIT

2. DOUBLE SEALING SEATS.IT CAN BE URGENTLY SEATED BY INJECTING GREASE THROUGH A GREASE INJECTION VALVE

3. DOUBLE BLOCK AND BLEED(DDB)DESIGN

3. PACKING IS FLEXIBLE GRAPHITE OR ACCORDING TO CLIENTS' REQUIREMENTS

5. OUTSIDE SCREW AND YOKE(OS&Y)

6. WITH PROTECTVE SHIELD AND INDICATOR



Main material

WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CN7M, CF8C, 4A, A105, LF2, F304, F316, F304L, F316L, F321, F51, etc..

Pressure rating

Class 150 to Class 2500

Standards applied

API. ASME, ANSI, NACE, CE/ EN, DIN, JIS, BS, ISO, TS, GB, etc.

Operative temperature

-196 °C to 980 °C ( -320.8 °F to 1796 °F)

Optional operation

Manual, Gear, Electric, Pneumatic, Hydraulic.



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
