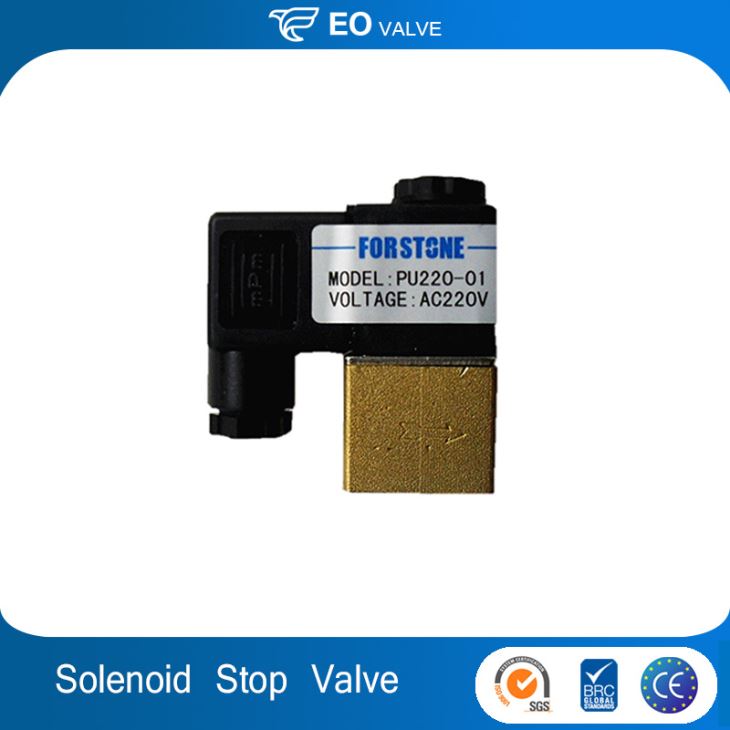

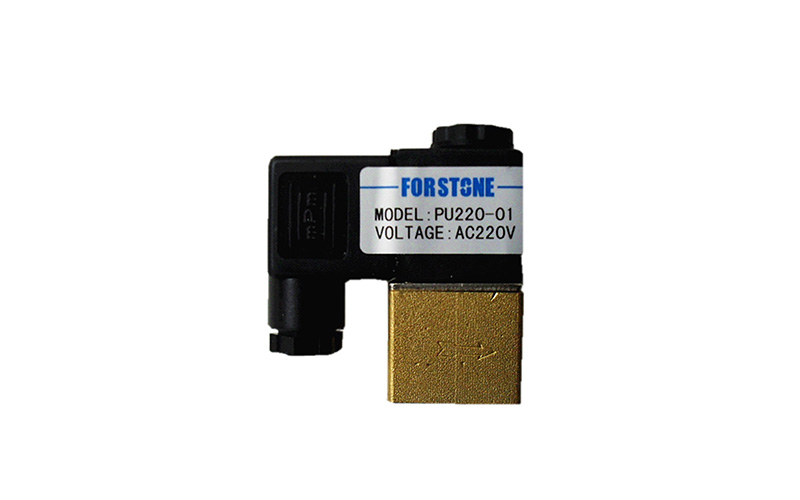

2 Way Brass Water Stop Solenoid Valve

2 Way Brass Water Stop Solenoid Valve

2 Way Brass Water Stop Solenoid Valve;Application:General,Color:Brass natural color,Type:Normal Colse,Working Temperature:5~80.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Control
Pressure:Medium Pressure
Power:Solenoid
Material:Brass, Brass
Temperature of Media:Normal Temperature
Media:Water
Port Size:1
Place of Origin:China (Mainland)
Model Number:EO220-08
Brand Name:EO
Application:General
Color:Brass natural color
Type:Normal Colse
Working Temperature:5~80
Weight:1.04kg
Medium:Water, Oil, Air
Aperure of flow ratea:25mm
Working pressure:0~7 kgf/cm2
Material of oil seal:NBR, VITON





Voltage:

DC - 12V,24V AC - 24V,AC 120V, 240V@60HZ 110V, 220V@50HZ Tolerance: +/- 10%


Material:

Body - Brass or Stainless steel

Seal -NBR, EPDM, PTFE or VITON

Armature Tube - Stainless Steel 304

Plunger - Stainless Steel 430F

Stop -SS430F

Springs - SS 304

Shading Rings - Stainless Steel 304


Characteristic:

1.Direct lifting diaphragm construction;

2.Open from zero bar for low pressure system use;

3.High frequency of DIN plug coil

4.Medium:Air, City Gas, Water, Oil, Petroleum, steam,etc.

5.Pressure: 0.00MPa ~ 1.0MPa.

6.Port Thread:BSPP ,BSPT ,NPT ,Flange, UNF, M8X1


Temperature:

NBR Seal: 14F to 176F , -10 to 80

EPDM Seal: 14F to 250F , -10 to 120

VITON Seal : 14F to 300F, -10 to 150.

Port Size:3/8,1/2,3/4,1,1 1/4,1 1/2,2

Orifice (mm): 12,15,20,25,32,40,50

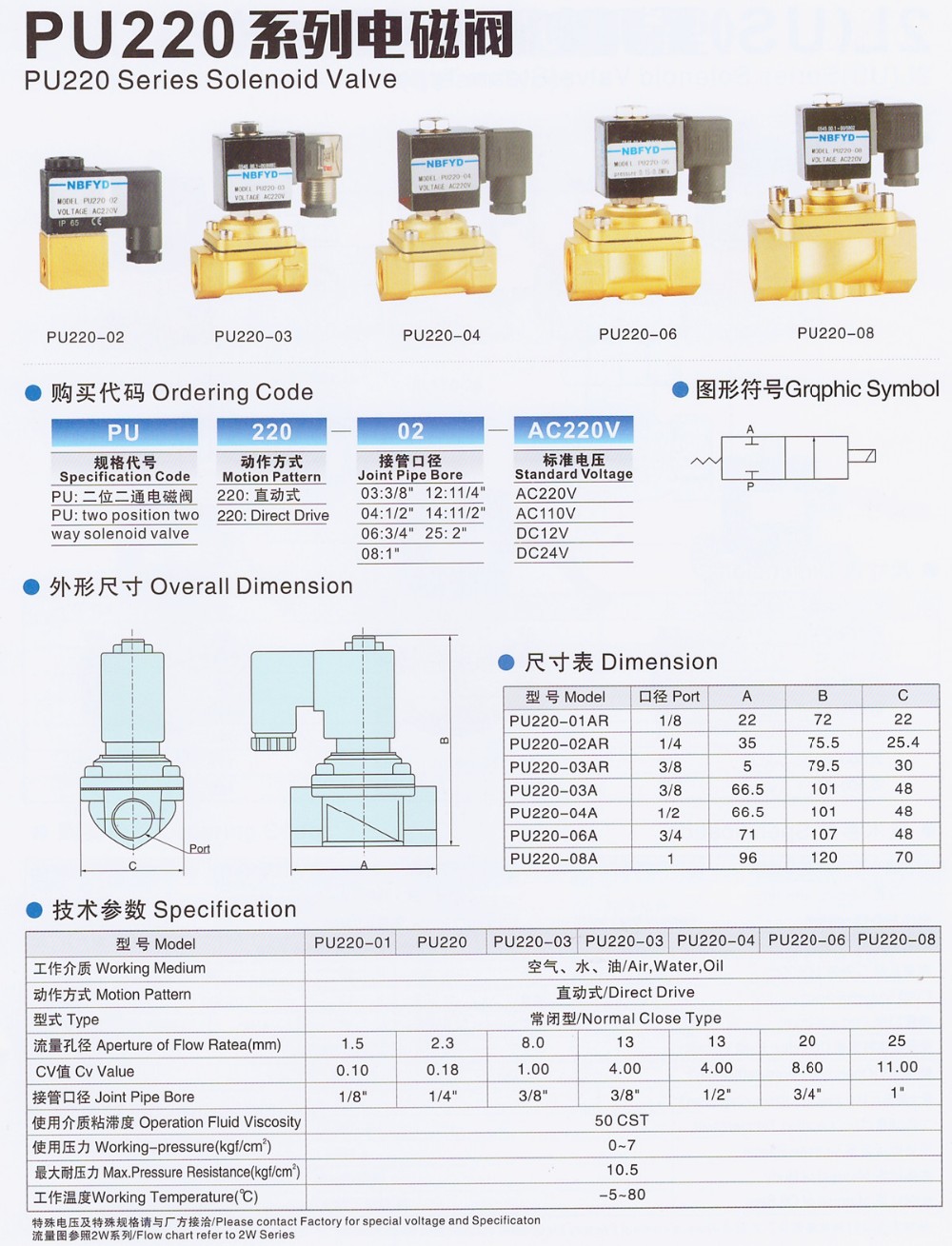

2路黄铜止水电磁阀PU220-08

2 way brass water stop solenoid valve PU220-08


2 way brass water stop solenoid valve PU220-08

2 way brass water stop solenoid valve PU220-08
