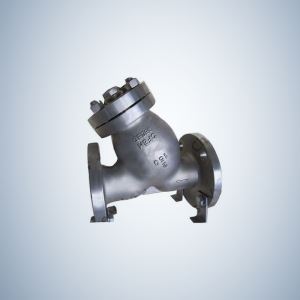

Y-Strainer Flanged End

Products Details :

These Y-Strainers Flanged End are most commonly used. These are suitable for water, Oil & Gas. The design is compact and full flow, with large filtration area for low pressure drop and more debris collection. Y-Strainers Flanged End are provided with drain Plug which can be replaced with Ball valve for frequent blow off. Element is stregnthened for rigidity and long life and fitted in machined seats. Flanges provided are as per ANSI B16.5 150#, DIN10 or to Customer's requirement. Suitable for working pressure or upto 250 PSI (16 KG/cm2), Hydraulically tested to 30Kg/cm2. Magnetic insert for Element can be supplied (OPTIONAL).

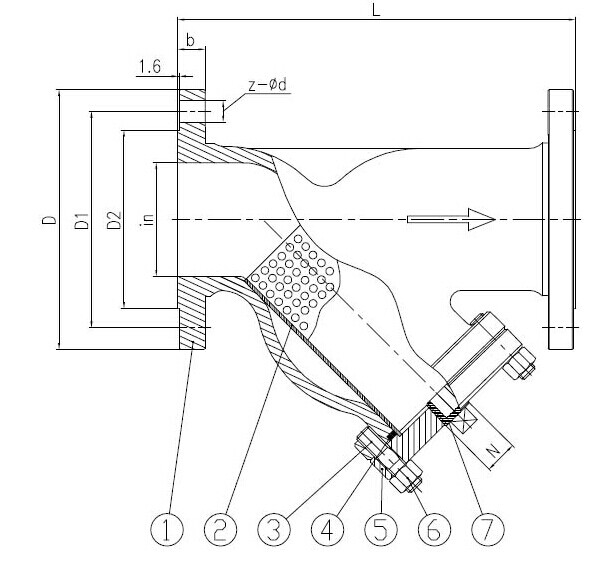

Technical Drawing:



PACKAGING & DELIVERY

Packaging details : Y-Strainers Flanged End: the strong plywood cases or as per the customer's request.

Delivery details  : 4-5 weeks after receipt of down payment by T/T

Payment ： T/T, L/C, Western Union and PayPal
