150Lb Cast Steel Y-Strainer
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 150lb cast steel y-strainer manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China 150lb cast...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 150lb cast steel y-strainer manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 150lb cast steel y-strainer manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

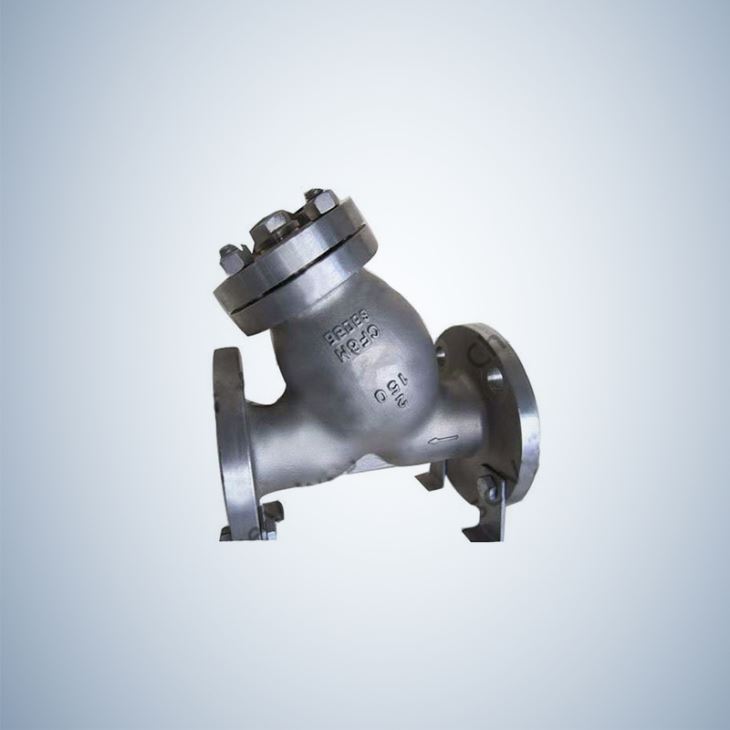

150LB Cast Steel Bolted Bonnet Y Type Strainer Flange Connection.
Product Specifications :
Standards:
1. DESIGN AND MANUFACTURE: | ASME B16.34 |
2. FACE TO FACE DIMENSIONS: | ASME B16.10(CHECK VALVE/GLOBE VALVE) OR MANUFACTURER’S SPECIAFICATION |
3. FLANGE ENDS DIMENSIONS: NPS1/2”-24” NPS26”~36” | ASME B16.5 ASME B16.47 |
4. BW ENDS DIMENSIONS: | ASME B16.25 |
5. SOCKET WELD ENDS DIMENSIONS: | ASME B16.11 |
6. PRESSURE-TEMPERATURE RATINGS: | ASME B16.34 |
7. PRESSURE: | CLASS 150~1500 |
8. SIZE: | NPS 2”~36” |
Specification:
Main material | WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CN7M, CF8C, 4A, A105, LF2, F304, F316, F304L, F316L, F321, F51, ect. |
Pressure rating | Class 150 to Class 2500 |
Standards applied | API. ASME, ANSI, NACE, CE/ EN, DIN, JIS, BS, ISO, TS, GB, etc. |
Operative temperature | -196 °C to 980 °C ( -320.8 °F to 1796 °F) |
Optional operation | Manual, Gear, Electric, Pneumatic, Hydraulic. |

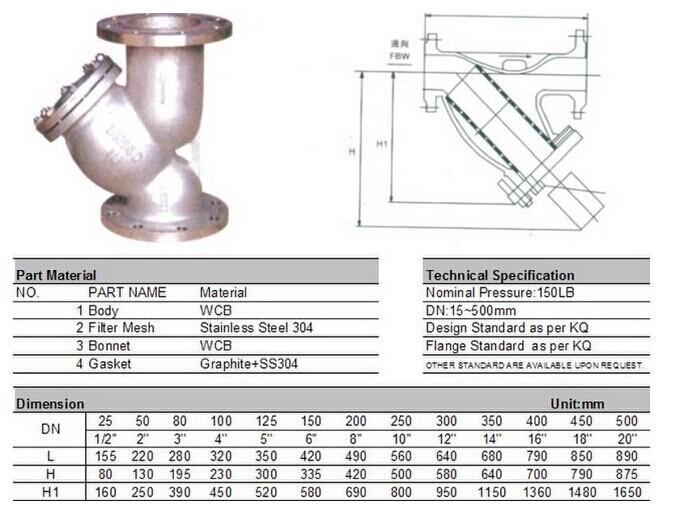

Structure Drawing:
Our Advantage:
1). Scale: 82,000.00 square meters non-dust workshop
2). The foundry is built to promise our raw material better before production.
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
5). Strict QC system is set up for the superior quality guarantee.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
