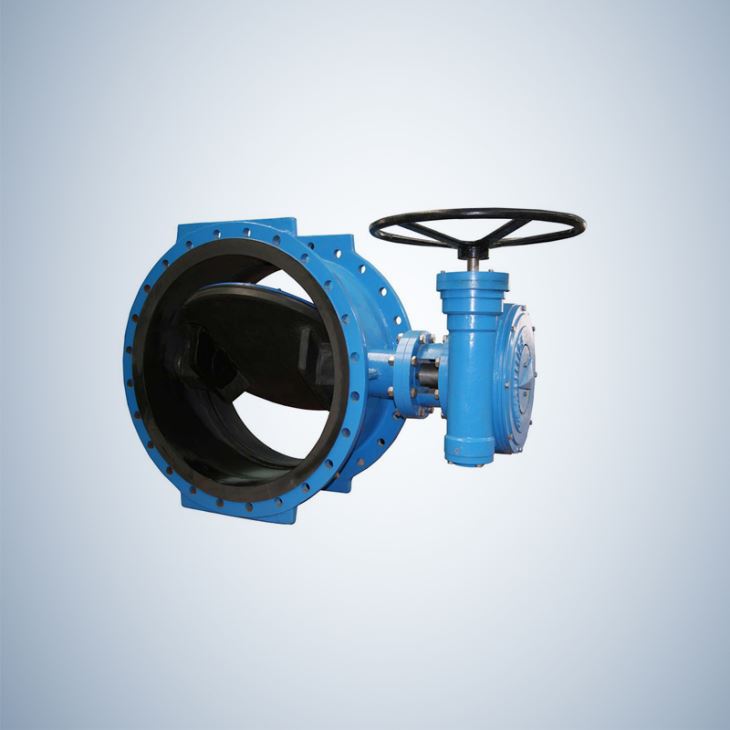

MANUAL OPERATED FLANGE CONCENTRIC BUTTERFLY VALVE



Cast Iron Concentric Butterfly Valve With Worm Gear Op is used for Water Treatment System, like drinking water, sewage plant, for consider of economy and application safety factor, when size above 600mm, we suggest to choose flange type, if size below 500mm, customer can choose wafer or lugged type.

1- Body: Ductile Iron GGG40/50 or Cast Iron GG25

2- Spindle: SS420/SS431/SS416

3- Disc: Ductile Iron, Cast Iron. SS304 (CF8) Stainless steel

4- Seat: EPDM or PTFE;     5- Pin: Stainless Steel

6- Epoxy Resin coating internal & external, thickness above 300 micron

7- Connection: Wafer type, lug type, flange type

8- Work pressure: PN10/16;   Size Range: DN50 - DN2400

9- Design Standard: DIN, EN558-1, API609; Top flange: ISO 5211;

10- Operate: Hand wheel or Worm Gear


STANDARDS:

1. DESIGN AND MANUFACTURE:

API 609

2. FACE TO FACE DIMENSIONS:

API 609

3.FLANGE ENDS DIMENSIONS: NPS1/2”~24”

ASME B16.5

4. PRESSURE-TEMPEARTURE RATINGS:

ASME B16.34

5. PRESSURE:

CLASS 150

6.SIZE:

NPS 2″~16″



MATERIAL LIST

ITEM

PART NAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A216 WCB

A352 LCC

A351 CF8M

2

BUSHING

PTFE

PTFE

PTFE

3

SEAT

PTFE/RUBBER

PTFE/RUBBER

PTFE/RUBBER

4

PIN

A276 410

A276 304

A276 316

5

STEM

A182 F6

A182 F304

A182 F316

6

DISC

A216 WCB

A352 LCC

A351 CF8M

7

GEAR OPERATOR

ASSEMBLY





GEAR OPERATOR, ELECTRICAL OPERATOR, PENUMATIC OPERATOR, HYDRAULIC OPERATOR ETC.ARE AVALIABLE

NOTE: OTHER METERIALS ARE AVALIABLE UPON REQUEST



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details : 4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
