12 Inch WCB Cast Steel Trunnion Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 12-inch-wcb-cast-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 12 INCH WCB CAST STEEL TRUNNION BALL VALVE Standard Design:......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 12-inch-wcb-cast-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 12 INCH WCB CAST STEEL TRUNNION BALL VALVE Standard Design:...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 12-inch-wcb-cast-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

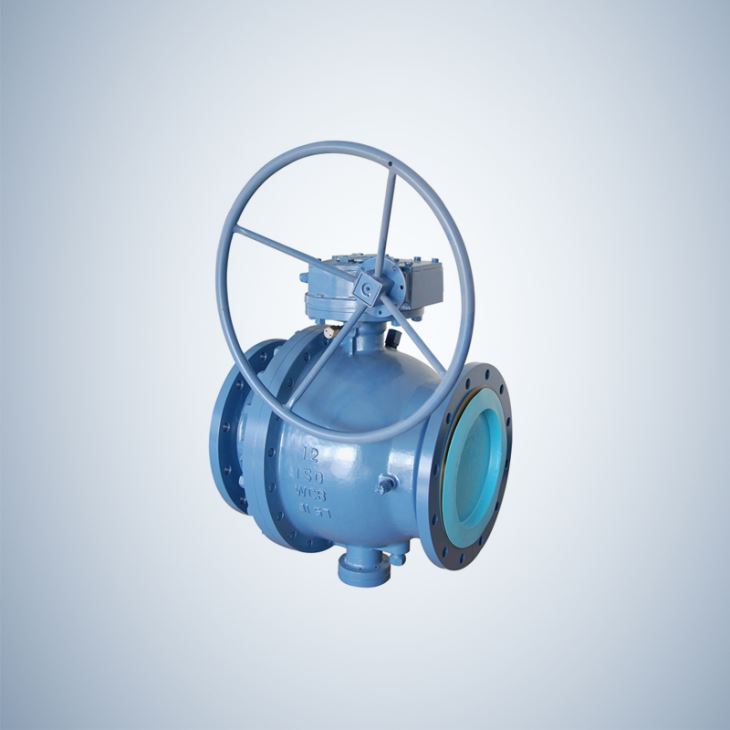

12 INCH WCB CAST STEEL TRUNNION BALL VALVE

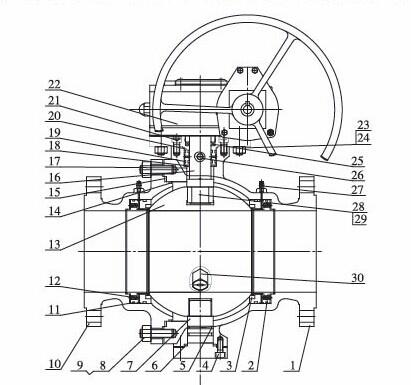

ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | SEAT RING | A105+ENP |
3 | SEAT INSERT | PTFE/RPTFE/NYLON |
4 | SCREW | A193 B7 |
5 | O-RING | VITON |
6 | GASKET | 304SS/316SS+GRAPGITE |
7 | TRUNNION | A105+ENP |
8 | BOLT | A193 B7 |
9 | NUT | A194 2H |
10 | BONNET | A216 WCB |
11 | O-RING | VITON |
12 | SPRINGS | INCONEL X-750 |
13 | BALL | A105+ENP |
14 | O-ING | VITON |
15 | GASKET | 304SS/316SS+GRAPHITE |
16 | STEM | A1045+RPTFE |
17 | BEARING | A1045+RPTFE |
18 | THRUST WASHER | PTFE |
19 | O-RING | VITON |
20 | PACKING BOX | A105+ENP |
21 | SCREW | CARBON STEEL |
22 | GEAR OPERATOR | ASSEMBLY |
23 | BOLT | CARBON STEEL |
24 | CARBON STEEL | CARBON STEEL |
25 | PACKING | GRAPHITE/PTFE |
26 | GERASE FITTING(STEM) | CARBON |
27 | GREASE TING(SEAT | CARBON |
28 | ANTI STATIC BALL | 304SS |
29 | ANTI STATIC SPRING | 304SS |
30 | DRAIN VALVE AND PLUG | CARBON STEEL |
Product Specifications :
Standard
Design: ASME B16.34/API 6D
Face to Face: ASME B16.10
End Flange: ASME B 16.5
BW End: ASME B16.25
Test: API 598
Fire SafeTest: API 607/API6FA
Special: NACE MR-01-75
Material
BODY:
Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys, Other materials under request
SOFT SEATS:PTFE, RPTFE, PEEK, DEVLON, NYLON, Other materials under request
METAL SEAT:Tungsten Carbide (TC), Ni60...Other materials under request.
TRIM:A105+EP, 304, 316, 410, MONEL, Other materials under request
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
