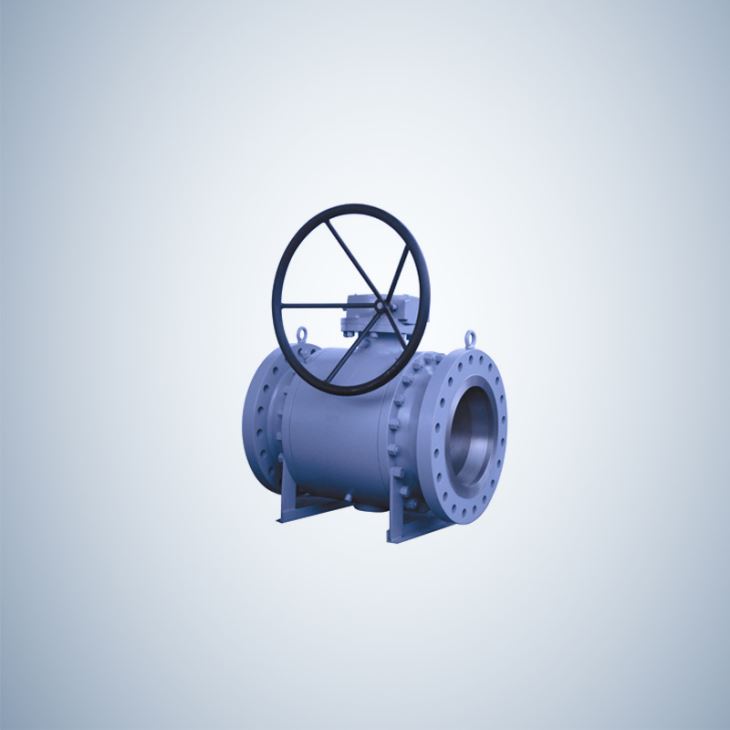

3 Piece Flanged Ends forged Steel Trunnion Ball Valve

3 Piece Flanged Ends forged Steel Trunnion Ball Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China 3 pieces 1500lb forged steel trunnion ball valve, 1500lb ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 3 pieces 1500LB HIGH PRESSURE FORGED......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China 3 pieces 1500lb forged steel trunnion ball valve, 1500lb ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 3 pieces 1500LB HIGH PRESSURE FORGED...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 3 pieces 1500lb forged steel trunnion ball valve, 1500lb ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

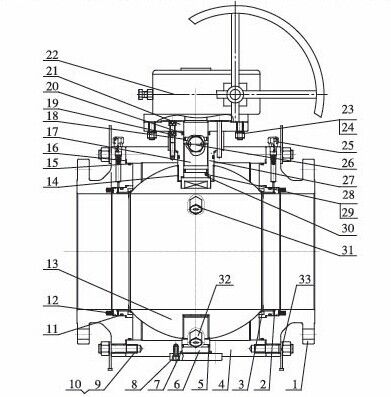

3 pieces 1500LB HIGH PRESSURE FORGED STEEL TRUNNION BALL VALVE




ITEM

PART NAME

MATERIAL

1

ADAPTER

A105

2

SEAT RING

A105+ENP

3

SEAT INSERT

PTFE/RPTFE/NYLON

4

BODY

A105

5

O-RING

VITON

6

TRUNNION

A105+ENP

7

GASKET

304SS/316SS+GRAPHITE

8

SCREW

A193 B7/BM

9

BOLT

ASTM A193 B7/BM

10

NUT

ASTM A194 2H/2HM

11

O-RING

VITON

12

SPRING

INCONEL X-750

13

BALL

A105+ENP

14

BEARING

AISI 1045+RPTFE聽

15

O-RING

VITON

16

GASKET

304SS/316SS+GRAPHITE

17

STEM

AISI 1040+ENP/AISI 1045+ENP

18

O-RING

VITON

19

SCREW

CARBON STEEL

20

PACKING

GRAPHITE/PTFE

21

CONNECTING PLATE

CARBON STEEL

22

GEAR OPERATOR

ASSEMBLY

23

BOLT

CARBON STEEL

24

NUT

CARBON STEEL

25

GREASE FITTING(SEAT)

CARBON STEEL

26

GREASE FITTING(STEM)

CARBON STEEL

27

PACKING BOX

A105+ENP

28

ANTI STATIC BALL

304SS

29

ANTI STATIC SPRING

304SS

30

THRUST WASHER

PTFE

31

DRAIN VALVE

CARBON STEEL

32

PLUG

CARBON STEEL

33

SUPPORT

CARBON STEEL



Product Specifications :

Valve manufacturing standards:API,ANSI,BS,DIN

Ball valve size range:1/2 to 36 inches

Pressure: class 150 to 2500lb

Valve applicable temperature:-196 to 650 degrees Celsius

Valve body materials:A105,LF2, F11, F22, F304, F304L,F316 and F316L etc


Feature :
Full size /shrinkage;
90 degrees of positioning and locking structure;
Special forms of "y" head handle;
Fire and anti-static design;
A pair of opposing butterfly spring;
Blowout proof stem;
Double sealing structure of valve stem middle;
Bolt, gasket sealing valve cover screw.
The valveis suitable for various high voltage medium.
API forged steel fixed ball valve is mainly used in chemical, metallurgy,petroleum, pharmaceutical and other industries of the pipeline;
Temperature:-196 to 450℃;
Drive mode:Manual, pneumatic, electric, hydraulic, turbine;
Nominal diameter:1/2 "to 12";Nominal pressure:150lb~1500lb;
Suitable medium:Water, gas, oil, natural gas and acid and alkali medium.



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
