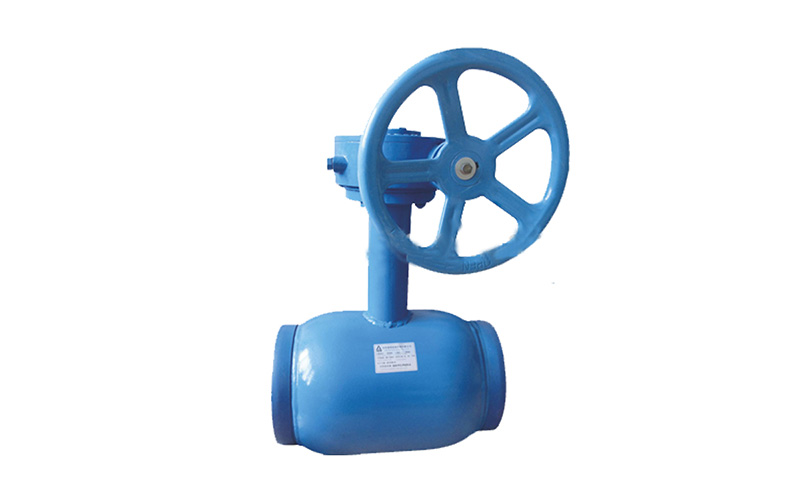

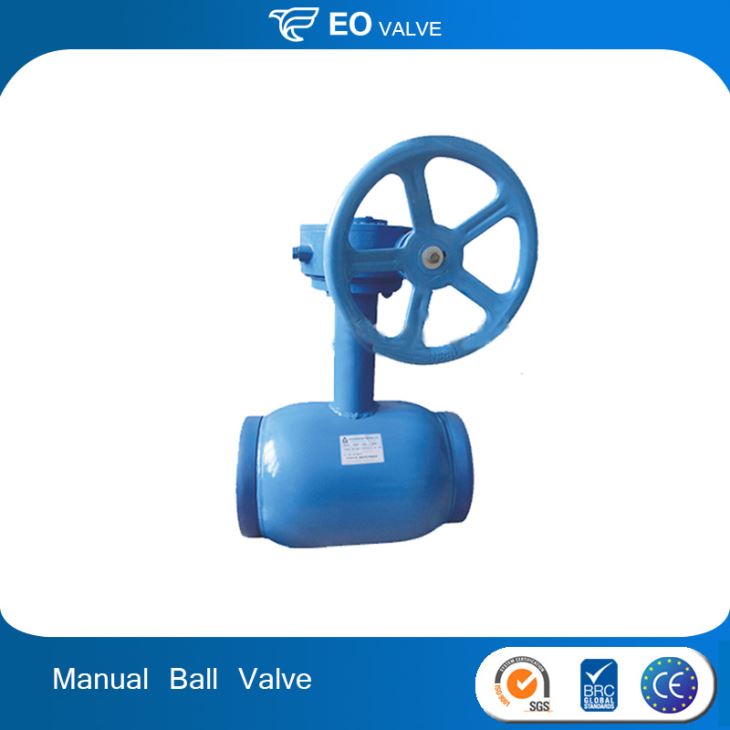

Manual Full Welded Ball Valve Float Valve
Integral seamless steel tube pressed full-auto welded without leaking outward.PTFE+25% carbon fiber and disc spring feely compensating structure zero leakage.Directly buried without need of a high ground well,saving the engineering cost.Both valve and pipeline are made of the same material, without the condition of uneven stress.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Ball |
| Pressure: | Medium Pressure |
| Power: | Electirc/ pneumatic/hydraulic/manual |
| Material: | Stainless Steel |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Port Size: | DN200-350(8"-14") |
| Place of Origin: | China (Mainland) |
| Brand Name: | EO |
| Application: | gas /water /oil industry |
| Product name: | Manual full welded ball valve float valve |
| Type: | Fully welded ball valve |
| Standard: | GB/T12237-2007,API6D,ASME B16.34,ISO 9001,KC,TS. |
| Body: | 20# carbon steel |
| Seat: | PTFE+C |
| Ball: | ss304 float valve |
| Maintenance: | 20 years maintenance free |
| Stem: | 2Cr13, blow-out proof structure |
Technical Parameter for fully welded ball valve:
Nominal Diameter: DN20~DN1400
Applicable temperature: -40~200℃
Connection Type: Butt welded/Flanged/Threaded/ Threaded flange
Operation: Manual/with gear/electrical/worm gear/pneumatic/hydraulic
Standard: GB/T12237-2007,API6D,ASME B16.34,ISO 9001,KC,TS.
Fully welded ball valve advantages:
1. Integral seamless steel tube pressed full-auto welded without leaking outward.
2. PTFE+25% carbon fiber and disc spring feely compensating structure zero leakage.
3. Directly buried without need of a high ground well,saving the engineering cost.
4. Both valve and pipeline are made of the same material, without the condition of uneven stress.
5. Multiple connection combination , fire and electrical prevention design, using in the special working conditions.

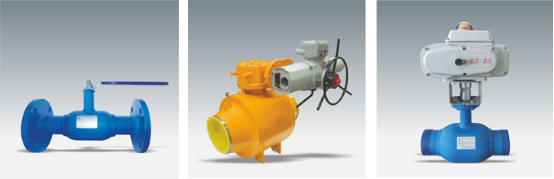

| Type of construction | Normal; Resist SSC; Welded flange ball valve; Heating ball valve; Gas ball valve; Pipeline ball valve; Buried design ball valve |
| Fully welded ball valve operated | N/A for lever operated; Electro-hydraulic operated; Pneumatic operated; Pneumatic operated with manual; Hydraulic operated; Hydraulic operated with manual; Pneumatic-Hydraulic operated; General electric operated; Explosion-proof electric operated |
| fully welded ball valve type | Normal; Resist SSC; Welded flange ball valve; Heating ball valve; Gas ball valve; Pipeline ball valve; Buried design ball valve |
| Type of connection | Female thread end; Male thread end; Flange end; Welding end; Wafer type; Hooped end |
