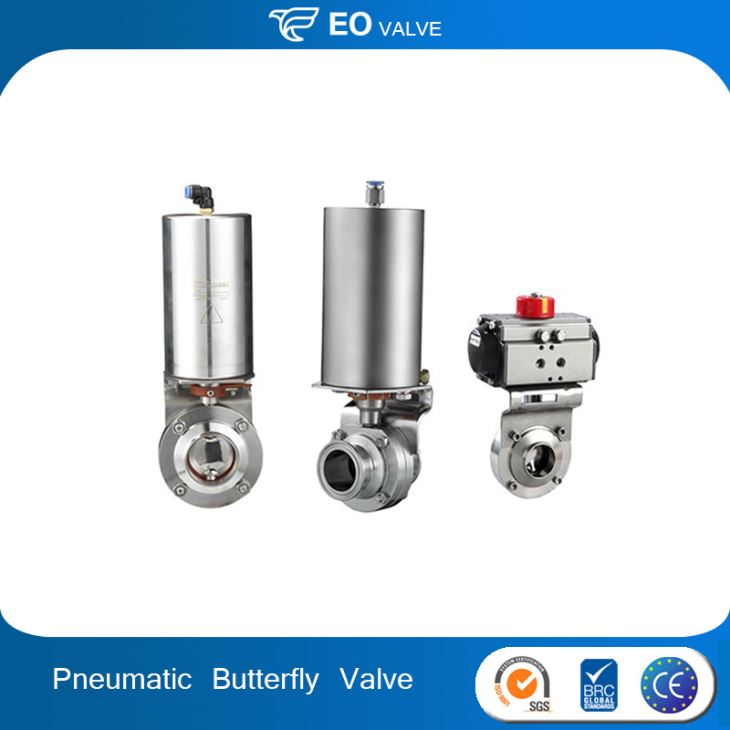

Sanitary Stainless Steel Pneumatic Butterfly Valve
Sanitary Stainless Steel Pneumatic Butterfly Valve;Pressure:Medium Pressure,Port Size:DN10-DN300& 1/2"-10",Connection:weld, clamp,flange,thread.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Butterfly |
| Pressure: | Medium Pressure |
| Power: | Pneumatic |
| Material: | Stainless Steel |
| Temperature of Media: | Normal Temperature |
| Media: | Water |
| Port Size: | DN10-DN300& 1/2"-10" |
| Place of Origin: | China (Mainland) |
| Model Number: | Butterfly Valve |
| Brand Name: | EO |
| Application: | General |
| Certificate: | ISO9001-2008 |
| Name: | Sanitary pneumatic butterfly valve |
| Connection: | weld, clamp,flange,thread |
| Product Description | |
| Product Name: | Sanitary Pneumatic Butterfly Valve |
| Material: | SUS304 ,SUS316 |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316LSeal |
| Availably size: | 1/2''-10'',or required |
| Availably connection: | Clamp / weld / thread/ weld thread/ flange |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual,Pneumatic,Electric |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO,PED/97/23/EC,FDA.177.2600 |
| Handle application: | Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
| Application scope: | Dairy food,beverage,pharmacy,cosmetic,chemical,etc |
| Packaging Details: | Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
