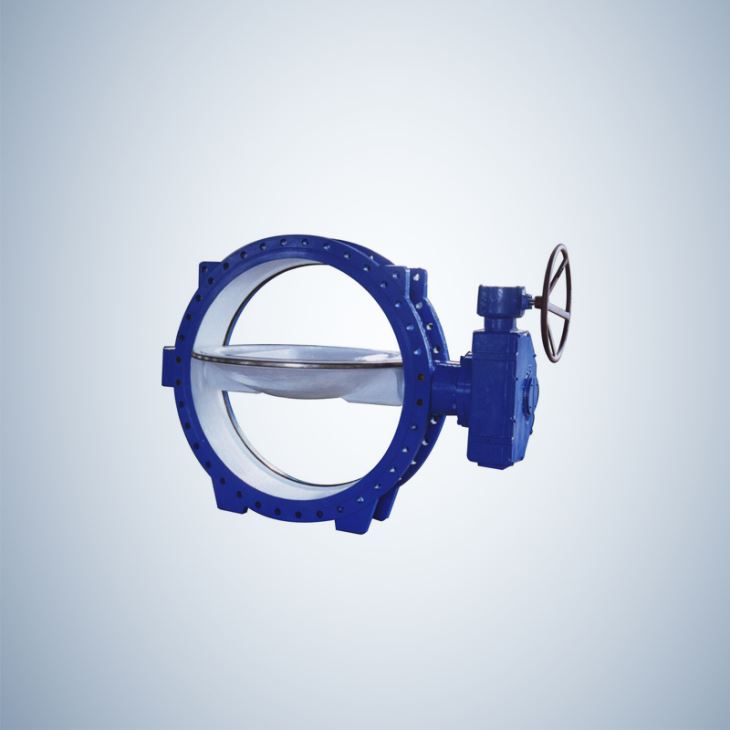

Design Cast Iron Double Offset Butterfly Valve

Design Cast Iron Double Offset Butterfly Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China cast iron double offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. HIGH PERFORMANCE HANDWHEEL DOUBLE OFFSET BUTTERFLY VALVE FEATURE......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China cast iron double offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. HIGH PERFORMANCE HANDWHEEL DOUBLE OFFSET BUTTERFLY VALVE FEATURE...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China cast iron double offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



HIGH PERFORMANCE HANDWHEEL DOUBLE OFFSET BUTTERFLY VALVE

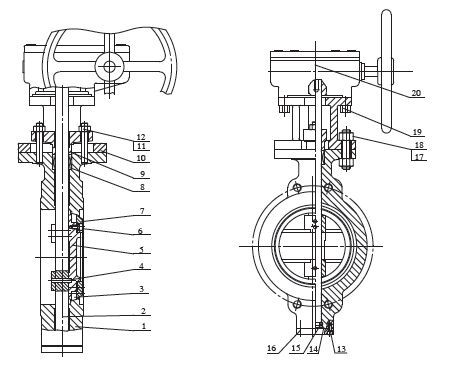

Product Specifications :


ITEM

PART NAME

MATERIAL

1

BODY

A216 WCB

2

STEM

A182 F6

3

SEAT

PTFE/RUBBER

4

PIN

A276 410

5

DISC

A216 WCB

6

SCREW

CARBON STEEL

7

SEAT GLAND

CARBON STEEL

8

PACKING

GRAPHITE/PTFE

9

GLAND FLANGE

A216 WCB

10

YOKE

A216 WCB

11

GLAND NUT

A194 2H

12

EYEBOLT

A193 B7

13

COVER BOLT

A193 B7

14

GASKET

SS304/SS316+GRAPHITE

15

SPLINT COLLAR

CARBON STEEL

16

COVER

A216 WCB

17

YOKE BOLT

A193 B7

18

YOKE NUT

A194 2H

19

BOLT

CARBON STEEL

20

GEAR

ASSEMBLY



FEATURE :

1. Reasonable in design, compact in construction, easy to install and maintain.

2. The double eccentric structure of the seal ring, providing the valve with a long service life.

3. bubble-tight sealing with no leakage under testing pressure.

4. Replacing material of the disc sealing ring and disc, the valve can be used for various medium and temperature.


STANDARDS :

1. DESIGN AND MANUFACTURE: API 609

2. FACE TO FACE DIMENSIONS: API 609

3. FLANGE ENDS DIMENSIONS: NPS1/2”~24”: ASME B16.5

4. PRESSURE-TEMPEARTURE RATINGS: ASME B16.34

5. PRESSURE: CLASS 150

6. SIZE: NPS 2″~16″




PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
