Cf8M Casting 3 Piece Bolted Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China cf8m casting 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CF8M CAST THREE PIECE BOLTED BALL VALVE Specification Three piece......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China cf8m casting 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CF8M CAST THREE PIECE BOLTED BALL VALVE Specification Three piece...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China cf8m casting 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

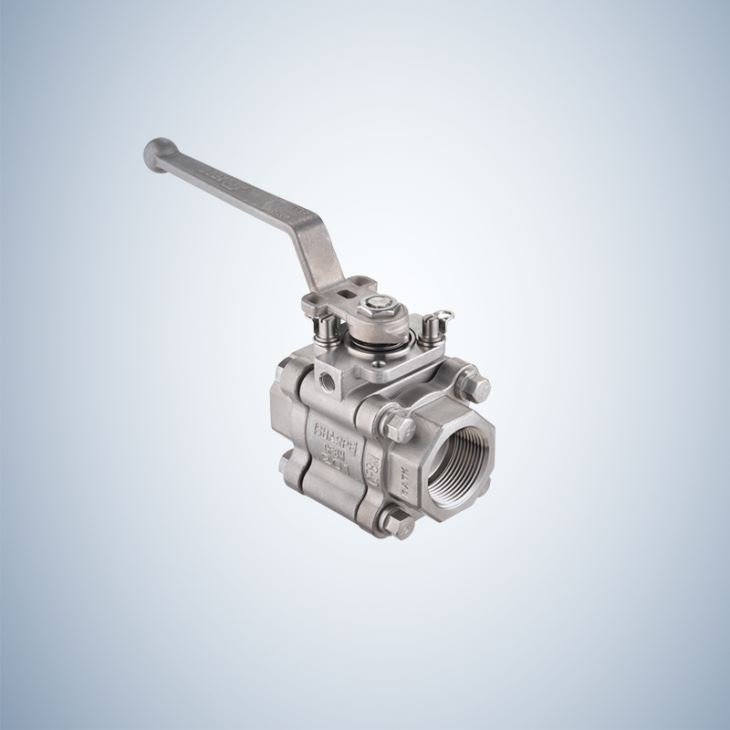

CF8M CAST THREE PIECE BOLTED BALL VALVE
Product Specifications :
Three piece bolted ball valve
1. Fluid resistance is small, the whole diameter of the ball basically no flow resistance.
2. Simple structure, small size and light weight.
3. Tight and reliable. It has two sealing surface, and the current valve sealing surface material widely used in a variety of plastic, sealing well, can be completely sealed. In the vacuum system has also been widely used.
4. Easy to operate, opening and closing rapidly, from fully open to fully closed as long as the rotation 90 °, to facilitate remote control.
5. Easy maintenance, valve structure is simple, seals are generally activities, and demolition are relatively easy to replace.
6. In the fully open or fully closed, the ball and valve seat sealing surface and the dielectric isolation, medium passed, will not cause the erosion of the valve sealing surface.
7. Wide application and a few millimeters diameter from small to large as a few meters from the high vacuum to high pressure can be applied.
8. As the ball valve in the open and close in the process of wiping nature, it can be used with suspended solids of the media.
Dimensions of 3pc ball valve with mounting pad
ITEM SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" |
D | 12.5 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
H | 48 | 48 | 50 | 52 | 65 | 70 | 85 | 93 | 116 | 125 | 180 |
W | 105 | 105 | 105 | 126 | 144 | 144 | 189 | 189 | 224 | 224 | 251 |
L | 72 | 72 | 72 | 80 | 85 | 105 | 113 | 132 | 170 | 186 | 220 |
Features
1. Full Port
2. API607 4th Edition Fire-safe Design Available (W306A)
3. Anti-static Configuration
4. Blow-out Proof Stem
5. Live Loaded Stem Seal
6. Integrated Mounting Pad
7. Fully Encapsulated Body Seals
8. Locking Handle
9. Variety of seat and seal material: Suitable for severe applications
Standard
Design:ASME B16.34 API608
Wall Thickness: EN12516-3
Pipe Thread: ASME B1.20.1 BS21
Butt-Weld: ASME B16.25(SCH 10.20.40)
Socket Weld ASME B16.11
Flange End: ASME B16.5
Testing: API598
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
