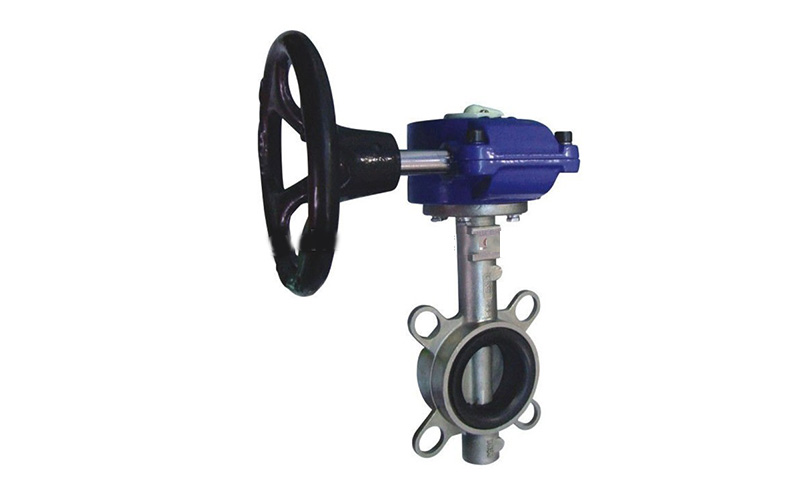

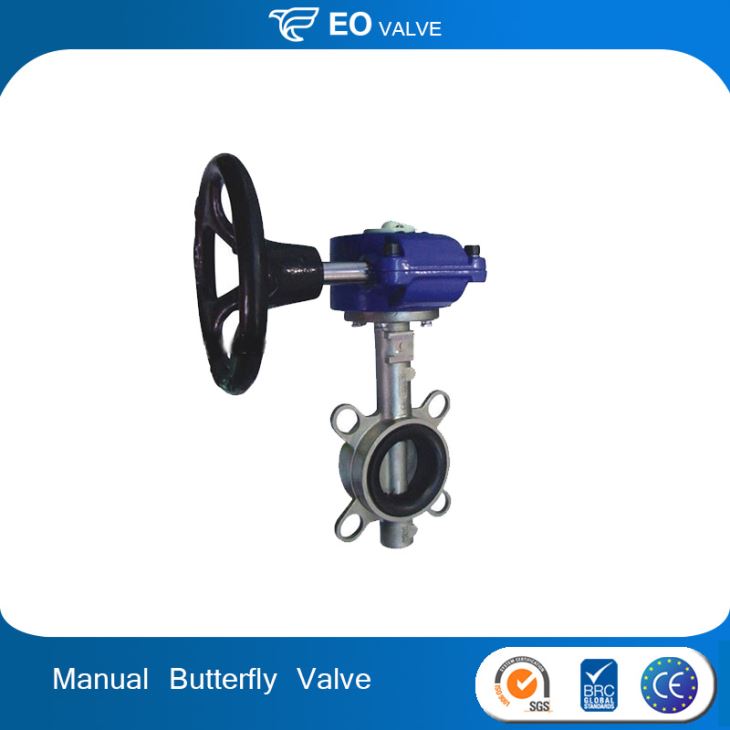

Manual Actuated Wafer Type Butterfly Valve

Manual Actuated Wafer Type Butterfly Valve

Manual Actuated Wafer Type Butterfly Valve;Disc Material Ductile Iron, Cast Iron, Aluminum...etc.Disc Material,Ductile Iron, Stainless Steel, Aluminum Bronze...etc.

Send Inquiry



Quick Details
Standard or Nonstandard:Standard
Structure:Butterfly
Pressure:Low Pressure
Power:Handle, Worm Gear...etc.
Material:Casting
Temperature of Media:-10℃ ~ 130℃
Media:Water
Port Size:DN25-DN1200
Place of Origin:China (Mainland)
Model Number:EO300
Brand Name:EO
Application:General
Body Material:Ductile Iron, Cast Iron, Aluminum...etc.
Disc Material:Ductile Iron, Stainless Steel, Aluminum Bronze...etc.
Seat Material:EPDM, PTFE, NBR...etc.
Surface Coating:Epoxy Coated / Nylon Coated
Suitable Medium:Water, Oil, Gas...etc.
Standard:DIN, JIS, ANSI, BS, GB, JB...etc.
Certification:CE / ISO9001 / ISO14001 / TS / OHSAS18001
Color:According to customers' requirement except red
Guarantee:12 months






SizeDN25-DN1200
End ConnectionWafer
Working PressurePN10 / PN16
Working Temperature-10℃ to 130℃
Suitable MediumWater, Gas, Oil...etc.
StandardDIN, JIS, ANSI, BS, GB, JB...etc.
ActuatorHandle, Worm Gear, Electric Actuator, Pneumatic Actuator...etc.
Color According to customers' requirements except red
Inspection and Test100% quantity be tested before delivery


Main Material of Butterfly Valve
Body MaterialDuctile Iron, Cast Iron, Aluminum...etc.
Disc MaterialDuctile Iron, Stainless Steel, Aluminum Bronze...etc.
Shaft Material Stainless Steel
Seat MaterialPTFE, EPDM, NBR...etc.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
