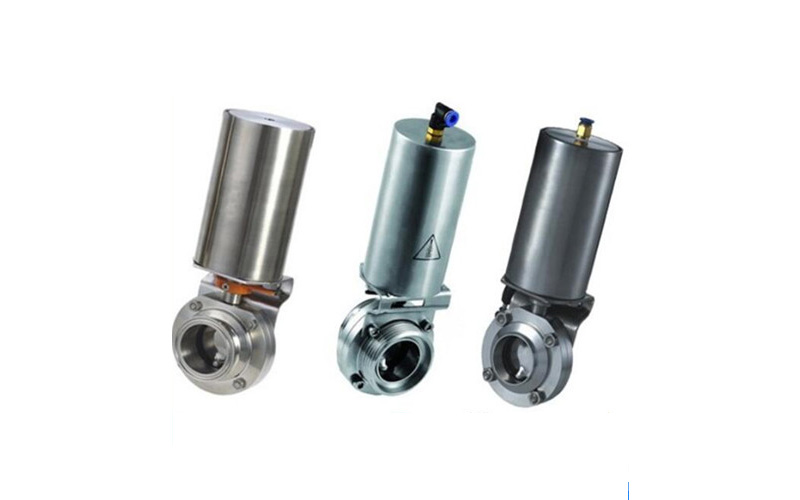

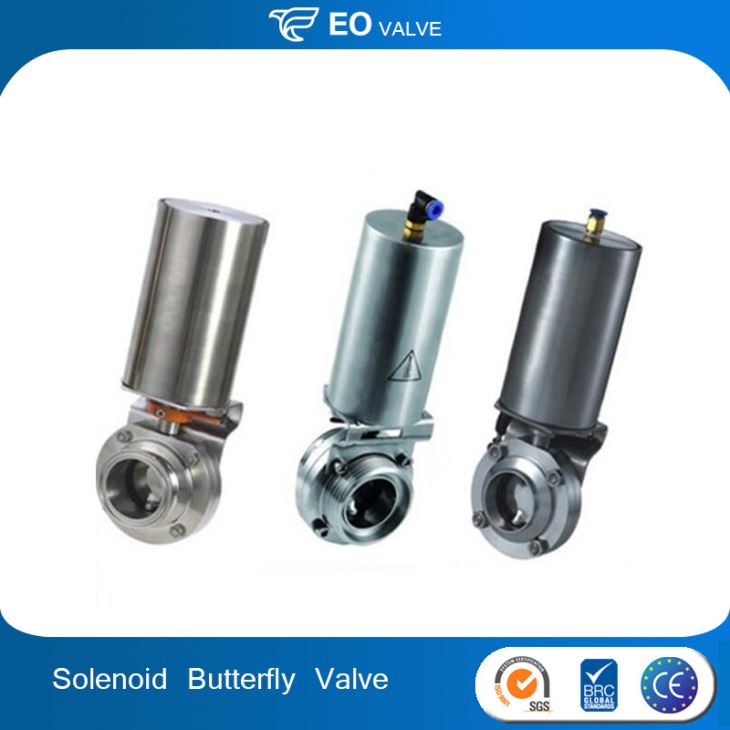

Actuated Butterfly Valve
The series of this valve is a kind of sanitary manual which are widely used in stainless steel pipeline system to control and regulate medium flow.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Butterfly |
| Pressure: | Medium Pressure |
| Power: | Manual |
| Material: | Stainless Steel |
| Temperature of Media: | High Temperature |
| Media: | Water |
| Port Size: | 1/2"-4" |
| Place of Origin: | China (Mainland) |
| Model Number: | ST-V1022 |
| Brand Name: | EO |
| Application: | General |
| Connection: | Weld/ Clamp/ Thred |
| Handle: | Pulling, plastic, stainless steel |
| Size: | 1.5'' |
| Seal: | Silicon |
| Kind: | DN150 butterfly valve |
| Usage: | Food, Pharmacy, Chmical Industries |
| Body material: | SS304/ SS316L |
| Certificate: | ISO9001:2008 CE |
| surface finishing: | Ra≤0.8um |
Application:
The series of this valve is a kind of sanitary manual which are widely used in stainless steel pipeline system to control and regulate medium flow.
Work Principle:
This kind of valve are handled by manual. EO offers three types handle, such as stainless steel multi-position handle, plastic multi-position handle, and pulling handle.
Multi-position handle regulates the valve by 13 seats achiening control of medium flow purpose.
Pulling handle regulates the valve through four multi-function positioning, in its open or close four position, also achieves control of medium flow purpose.
Standard Design:
Various standards of valves can be provide can be provided to clients: DIN, 3A, SMS, ISO/IDF, BS/RJ, ASME/BPE etc.
The parts of valve includes two pieces body of valve, disc, gasket of valve disc, bush, and the entire valve is assemble together with bolts and nuts.

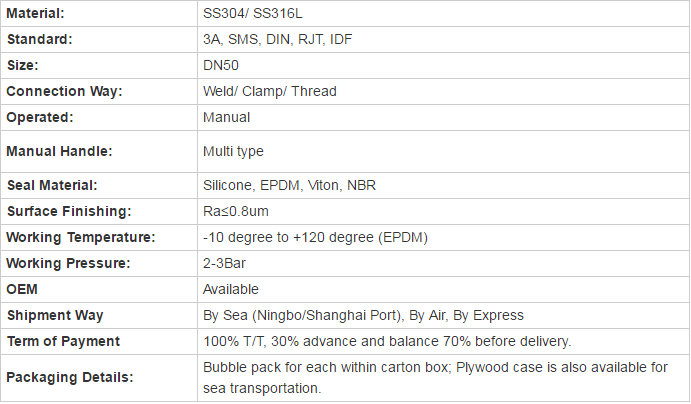

Main Details:
