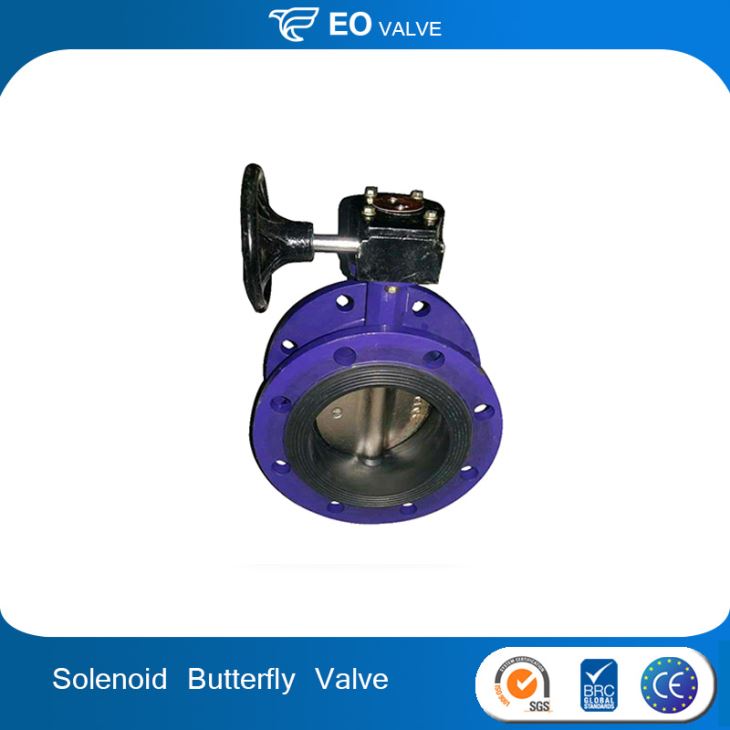

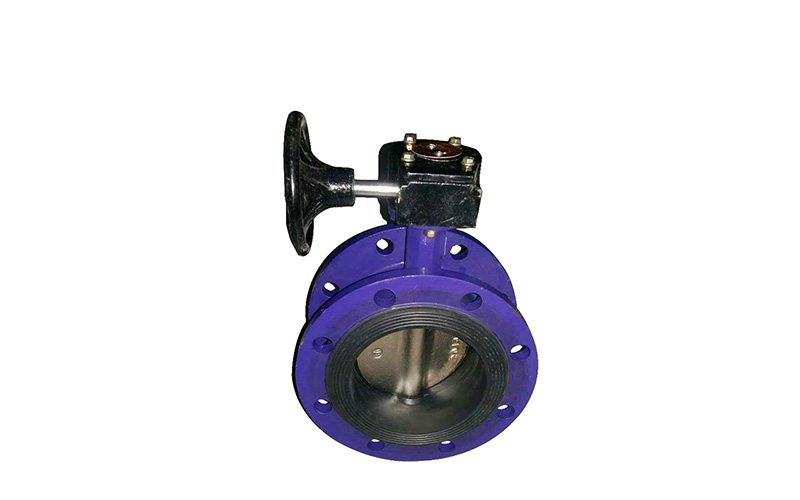

Solenoid Actuated German Types Of Butterfly Valve
Solenoid Actuated German Types Of Butterfly Valve;Material:cast iron,ductile iron, stainless steel,WCB,Temperature of Media:Normal Temperature,Standard or Nonstandard:Standard,Application:General
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Butterfly |
| Pressure: | Low Pressure |
| Power: | Manual |
| Material: | cast iron,ductile iron, stainless steel,WCB |
| Temperature of Media: | Normal Temperature |
| Media: | water,sewage,oil,gas and so on |
| Port Size: | DN50-DN2200 |
| Place of Origin: | China (Mainland) |
| Model Number: | D41X68 |
| Brand Name: | EO |
| Application: | General |
| Certificate: | ISO9001:2008 CE |
| Name: | double flanged butterfly valve |
| Design standard: | BS5155,API609,EN593 |
| Test standard: | DIN3230 Part3,API598,EN12266-1 |
| Face to face standard: | EN558-1,ISO5752 |
| End connection: | DIN2501 PN10/16,BS4504 PN10/16,ASME B16.1 125LB/150LB,JISB2220 10K |
| Working pressure: | 10bar/16bar |
| Shell test pressure: | 15bar/24bar |
| Seal test pressure: | 11bar/17.6bar |
| Free sample: | negotiable |
Product Description
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
