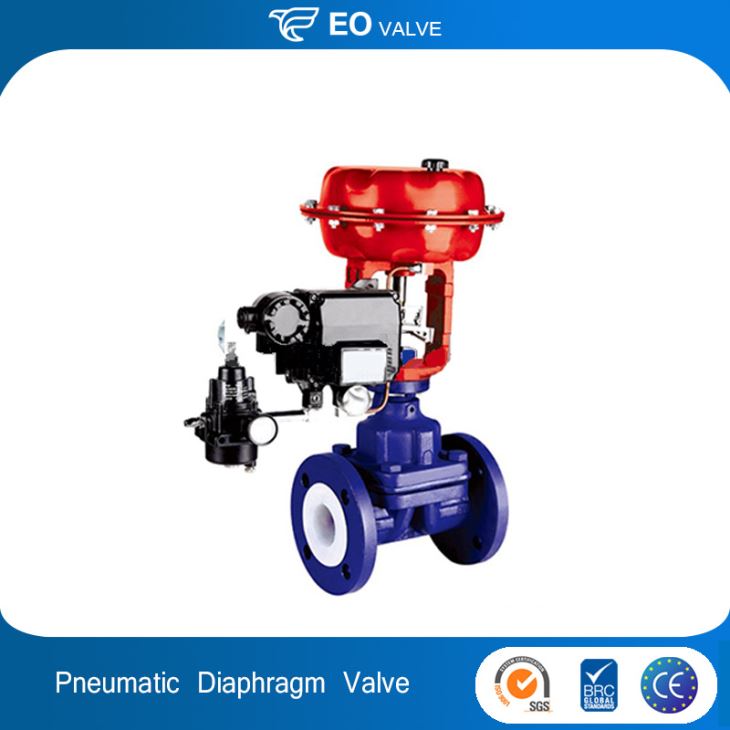

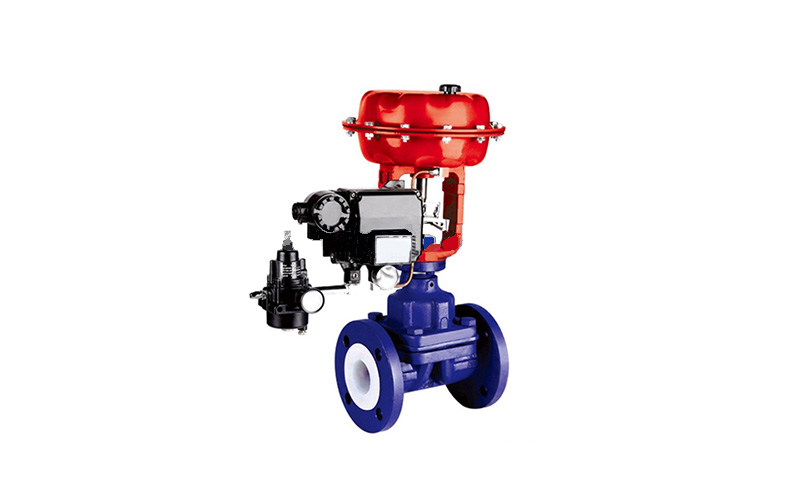

Pneumatic Actuator Diaphragm Valve
Pneumatic Actuator Diaphragm Valve;Structure:DiaphragmTemperature of Media:-50℃~175℃ based on material,Place of Origin:China (Mainland),Brand Name:EO.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Diaphragm |
| Pressure: | 0.6MPa~1.6MPa; 150lb, 10K,etc |
| Power: | Pneumatic |
| Material: | Cast Iron, Carbon Steel, Stainless Steel |
| Temperature of Media: | -50℃~175℃ based on material |
| Media: | Water, Steam, Strong acid, alkali, and various organic solvents,etc |
| Port Size: | DN15-400 (1/2"~16") |
| Place of Origin: | China (Mainland) |
| Model Number: | BPG41 |
| Brand Name: | EO |
| Application: | General |
| Product Name: | DN200 Regulating 4~20mA Pneumatic actuator Diaphragm Valve |
| Connection Type: | Flange |
| Flange Type: | RF, FF |
| Stem Material: | Stainless Steel |
| Diaphragm Material: | FEP(F46), PFA,FPDM,etc |
| Acting Type: | Air to open, air to close |
| Control Type: | On Off, Regulating Type |
| Regulating Type Signal: | 4~20mA |
| Standard Range: | ANSI,API,JIS,DIN,BS,GB,etc |
| Color: | To Order |

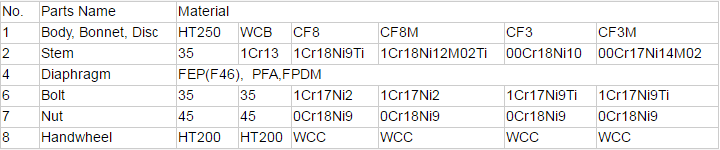

Pneumatic Diaphragm Valve Main Parts Material:
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
