Shenyang EO Valve Co.,Ltd is a leading China 2 inch forged steel gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 2 inch forged steel gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

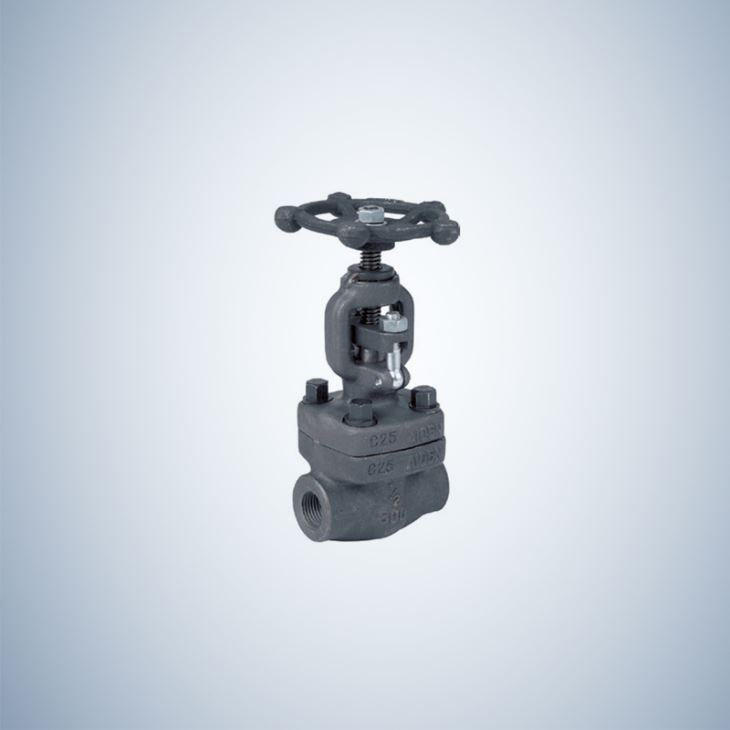

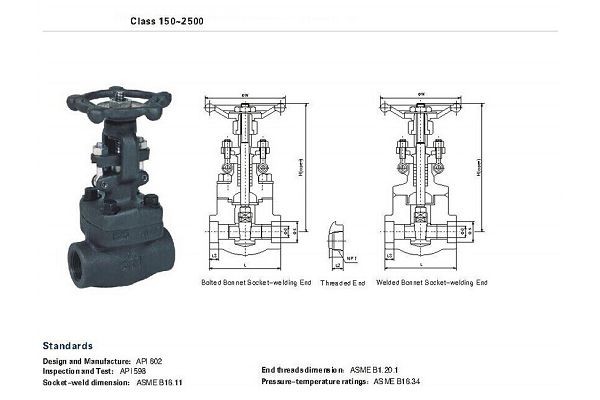

2 Inch Forged Steel Bolted Bonnet Gate Valve.

Product Specifications :

STANDARDS:

DESIGN AND MANUFACTURE

API 602(BS 5352)

DESIGN AND MANUFACTURE

ASME B16.10 OR MANUFACTURER'S SPECIFICATION

FLANGE ENDS DIMENSIONS

ASME B16.5

BW ENDS DIMENSIONS

ASME B16.25

SOCKET WELD ENDS DIMENSIONS

ASME B16.11

THREADED ENDS DIMENSIONS

ASME B1.20.1

PRESSURE-TEMPERATURE RATINGS

ASME B16.34

NORMAL PRESSURE

CLASS 150-1500

NORMAL DLAMETER

NPS1/2"~2"


Design Feature:

1. BOLTED BONNET OR WELDED BONNET

2. WEDGE TYPE: SOLID WEDGE

3. BACK SEAT DESIGN

4. STEM IS INTEGRALLY FORGED AND CONNECTED WITH WEDGE BY T-JOINT

5. PACKING IS FLEXIBLE GRAPHITE OR OTHER MATERIALS ACCORDING TO CLIENTS REQUIREMENTS, AND A SPRING-LOADED MECHANISM CAN BE PROVIDED AS PER SPECIAL REQUIREMENTS

6. OUTSIDE SCREW AND YOKE (OS&Y)


MATERIAL LIST:

ITEM

PART NAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A105

A350 LF2

A182 F316

2

SEAT

A105

A350 LF2

A182 F316

3

WEDGE

A105

A350 LF2

A182 F316

4

STEM

A182 F6

A182 F304

A182 F316

5

GASKET

304SS/316SS+GRAPHITE/SOFT CARBON STEEL/304SS/316SS METAL RING

6

BONNET

A105

A350 LF2

A182 F316

7

BOLT

A193 B7/B7M

A320 L7/ L7M

A193 B8M

8

STEM PACKING

GRAPHITE / PTFE

9

GLAND

276 410

276 410

A276 316

10

GLAND FLANGE

A105

A350 LF2

A182 F316

11

GLAND NUT

A194 2H/2HM

A194 7/7M

A194 8

12

EYEBOLT

A193 B7/B7M

A320 L7/L7M

A193 B8

13

STEM NUT

A276 420 /Cu-ALLOY

14*

HANDWHEEL

STEEL/ DUCTILE IRON


ELECTRICAL OPERATOR AND PNEUMATIC OPERATOR ARE AVAILABLE

NOTE: OTHER MATERIALS ARE AVAILABLE UPON REQUEST
