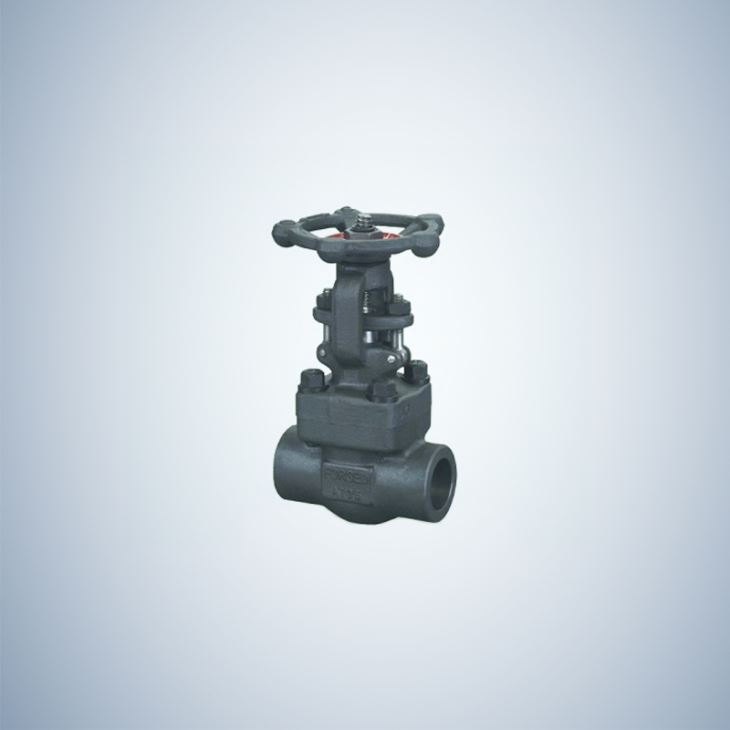

Threaded Forged Gate Valve Handle Operate

Threaded Forged Gate Valve Handle Operate

Products Details : Shenyang EO Valve Co.,Ltd is a leading China threaded forged gate valve handle operate manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China threaded forged gate valve handle operate manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China threaded forged gate valve handle operate manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


API a105 Socket weld ends forged steel gate valve.

Product Specifications :

Standard:

· Design : API 602

·Face to face : ASME B 16.10

·End Flange :  ASME B 16.5

·Butt welding ends : ASME B 16.25

·Socket Welding ends :ASME B 16.11

·Screw ends : ASME B 16.20.1

·Inspection and test :  API 6D , API 598.


Design feature:

Normal size: 3/8 to 2 inches
Pressure rating:150 to 1,500lb
Design standard: API 6D
Design features: BB OS/Y, WB OS/Y, possible OS/Y and Solid gate
Materials: A105, LF2, F11, F22, F5, F304, F316, F304L, F316L and F5
Operating style: hand-wheel
With API 6D and API 598 marks


Main Parts Material:

ITEM

PART NAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A105

A350 LF2

A182 F316

2

SEAT

A105

A350 LF2

A182 F316

3

WEDGE

A105

A350 LF2

A182 F316

4

STEM

A182 F6

A182 F304

A182 F316

5

GASKET

304SS/316SS+GRAPHITE/SOFT CARBON STEEL/304SS/316SS METAL RING

6

BONNET

A105

A350 LF2

A182 F316

7

BOLT

A193 B7/B7M

A320 L7/ L7M

A193 B8M

8

STEM PACKING

GRAPHITE / PTFE

9

GLAND

276 410

276 410

A276 316

10

GLAND FLANGE

A105

A350 LF2

A182 F316

11

GLAND NUT

A194 2H/2HM

A194 7/7M

A194 8

12

EYEBOLT

A193 B7/B7M

A320 L7/L7M

A193 B8

13

STEM NUT

A276 420 /Cu-ALLOY

14*

HANDWHEEL

STEEL/ DUCTILE IRON


* ELECTRICAL OPERATOR AND PNEUMATIC OPERATOR ARE AVAILABLE

NOTE: OTHER MATERIALS ARE AVAILABLE UPON REQUEST


Advantage:

1). Scale: 82,000.00 square meters non-dust workshop

2). The foundry is built to promise our raw material better before production.

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

5). Strict QC system is set up for the superior quality guarantee.



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
