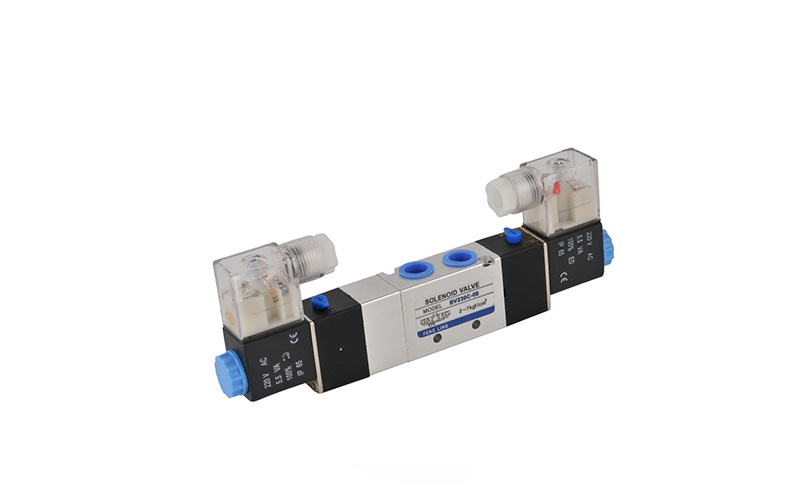

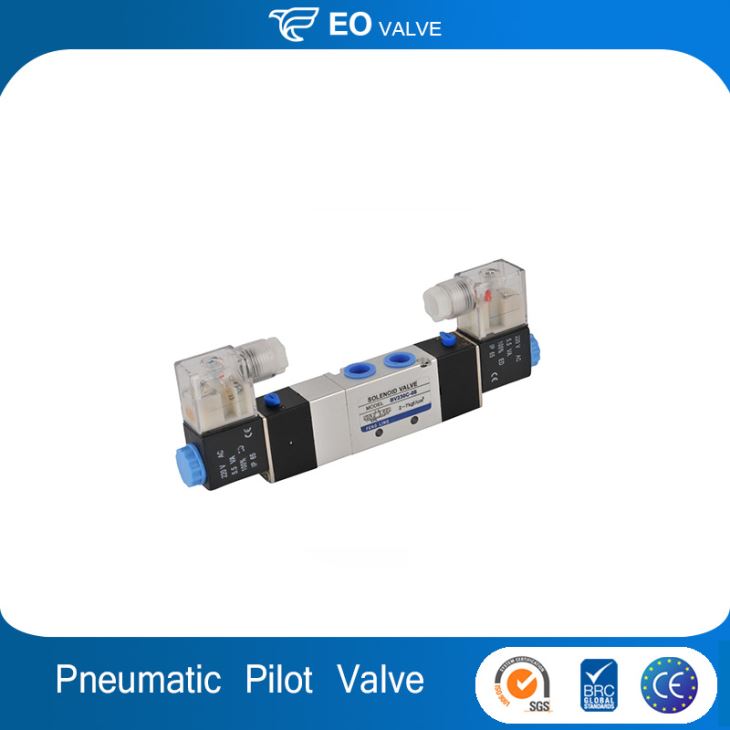

Solenoid Pneumatic Valve Pilot 5 Port 3 Position Solenoid Valve
Solenoid Pneumatic Valve Pilot 5 Port 3 Position Solenoid Valve;Pressure:Medium Pressure,Material:Alloy,Media:Gas,Port Size:1/4",Model Number:4V230C-08.

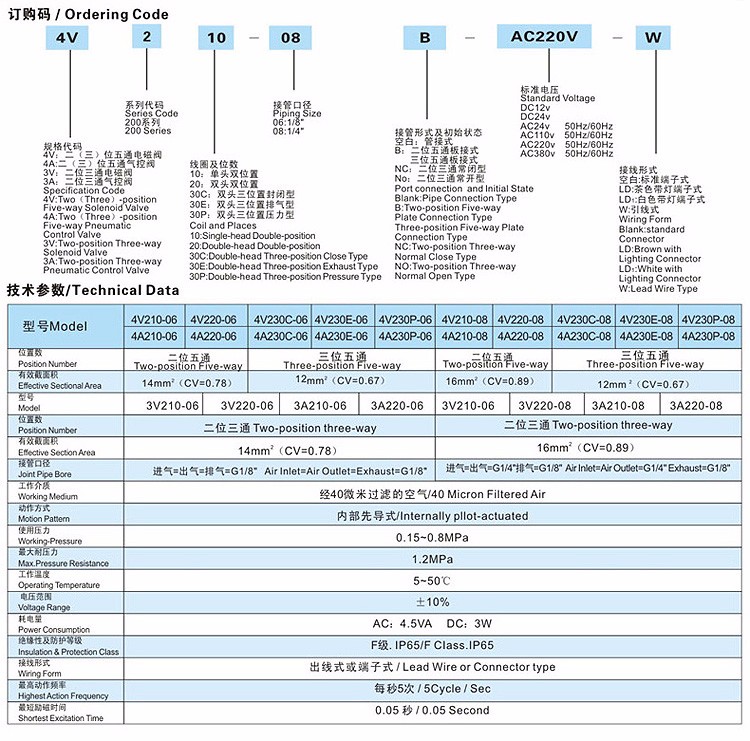

| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Pilot |
| Pressure: | Medium Pressure |
| Power: | Solenoid |
| Material: | Alloy |
| Temperature of Media: | Medium Temperature |
| Media: | Gas |
| Port Size: | 1/4" |
| Place of Origin: | China (Mainland) |
| Model Number: | 4V230C-08 |
| Brand Name: | EO |
| Application: | General |

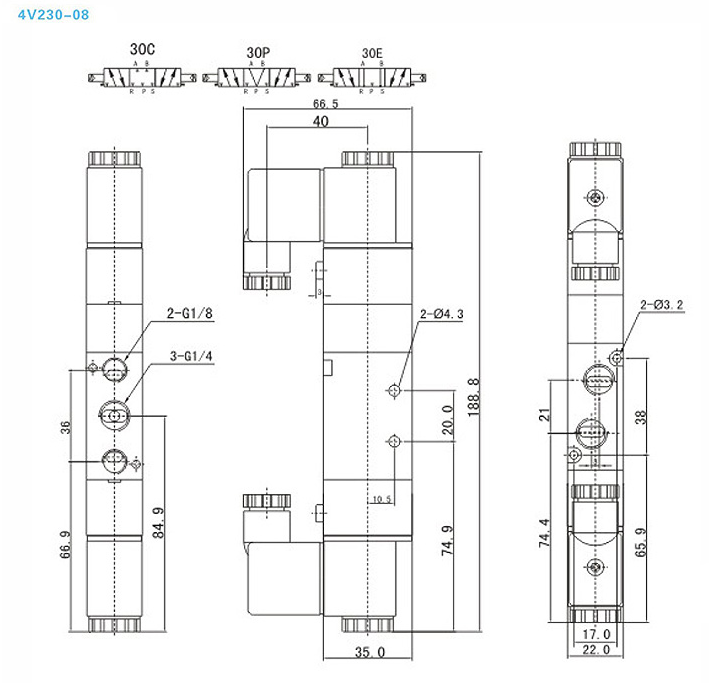

| Joint Pipe Bore: | Air Inlet =Air Outlet=G1/4 Exhaust=G/1/8 |
| Position Number: | Three-position Five-way |
| Body material: | Aluminum Alloy |
| Wiring Form: | Lead Wire/Connector (Terminal) Type |
| Operating Temperature: | 5~50℃ |
| Weight: | 0.40 kg |
4V series of solenoid valve overall profile manufacturing, the use of slot structure to high-precision processing technology to protect product performance, the product is compact, rational design, good commutation, and can be integrated on the floor, occupies a small space, easy maintenance.
