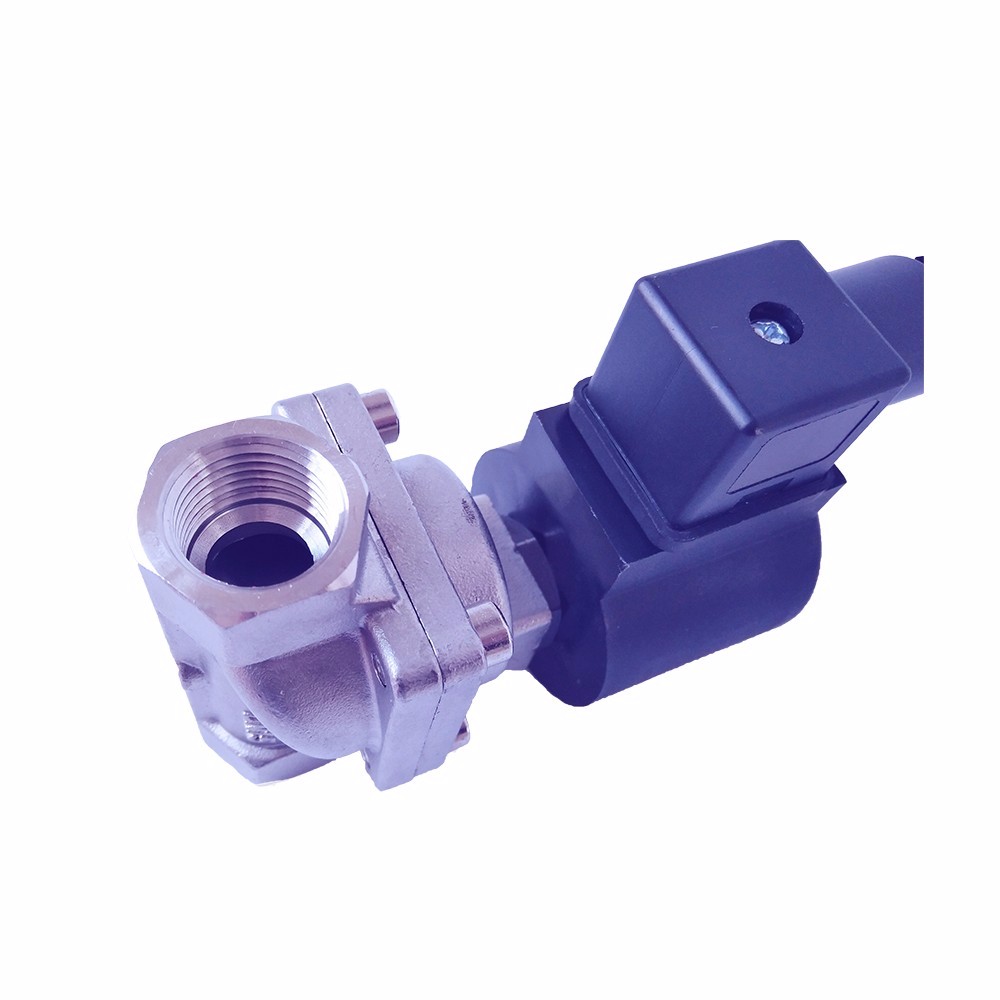

KLS Series Stainless 2/2 Way Pilot Acting High Pressure Solenoid Valve

KLS Series Stainless 2/2 Way Pilot Acting High Pressure Solenoid Valve

KLS series stainless 2/2 way Pilot Acting High Pressure Solenoid Valve;Material:Stainless Steel,Media:Water,Place of Origin:China (Mainland),Application:General,Voltage:solenoid valve 220v ac.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Control
Pressure:Medium Pressure
Power:Solenoid
Material:Stainless Steel
Temperature of Media:Normal Temperature
Media:Water
Port Size:ZG 1/2"
Place of Origin:China (Mainland)
Model Number:KLS high pressure solenoid valve
Brand Name:EO
Application:General
Voltage:solenoid valve 220v ac
Fluid:air, water steam
Acting type:direct acting
Fluid pressure:0.05~5.0MPa high pressure solenoid valve
Fluid temperature:0~180C
Diphragm:PTFE
Coil:brass
Orifice:15mm
Port size:1/2"
Mini order quantity:1 piece



Feature:

Variety of por size: 1/4"~2"

Variety of connection: thread and flange

Variety of fluid: air, water, seam, oil

voltage can be DC12V, 24V, 110V AC, 220VAC

Valve body material: stainless steel 304/316

Seals: PTFE

High pressure design, direct acting, fast working speed

This 220VAC solenoid valves can install with water proof, explosion proof solenoid valve coils.

Orifice Size: 15mm~50mm


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
