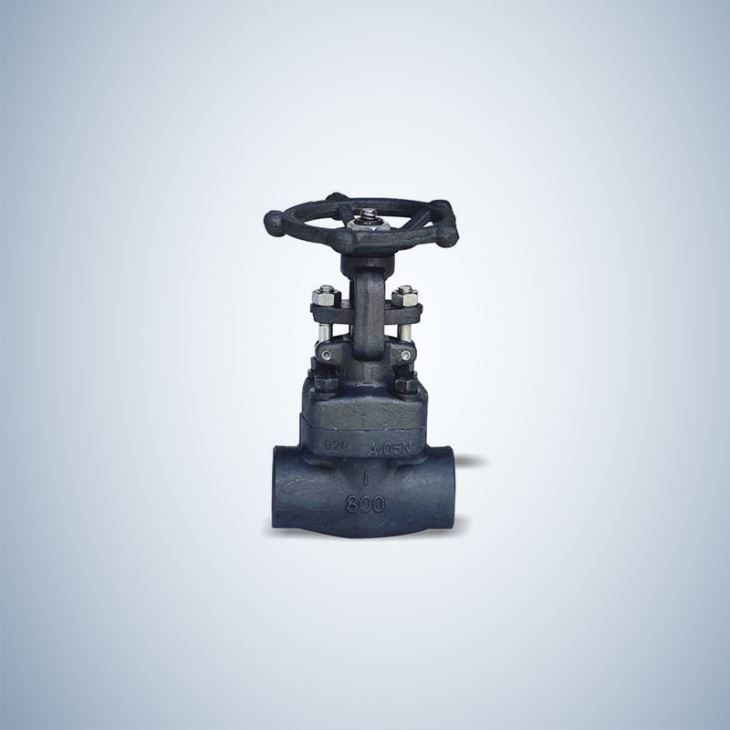

Bonney Forge Bolted Bonnet Forged Gate Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China bolted bonnet forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China bolted...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China bolted bonnet forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China bolted bonnet forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
API 602 Full Port Bolted Bonnet Forged Steel Gate Valve.
Product Specifications :
Design Standard:
Basic standard | API 602 |
Flange connection dimension | ASME B16.5 |
Butt welding connection dimension | ASME B16.25 |
Face-to-face dimension | ASME B16.10 |
Pressure-Temperature Rating | ASME B16.34 |
Test | API 6D, API 598, BS6755, API 607/6FA |
Technical Specification:
Type | Forged steel bolted bonnet gate valve | ||
Size | 3/8"-2" | Body material | Carbon steel,Forged, Stainless steel, brass, Alloy steel, etc |
Rating | 150lb-2500lb | Trim | Per API6D |
Pressure | High | End connection | NPT, SW, RF, RTJ, BW etc. |
Temperature | High | Operation | Hand wheel, Gear, Electric, Manual, Pneumatic, Hydraulic |
Media | water/oil/steam/gas, etc. | Remark | Accept Customize, OEM |
Main parts Materials:
NO. | Part Name | AStoASTM | AStoASTM | AStoASTM | |
A105 | F22 | F304(L) | F316(L) | ||
1 | Body | A105 | A182F22 | A182F304(L) | A182F316(L) |
2 | Seat Ring | A276420 | A276304 | A276304(L) | A276316(L) |
3 | Wedge | A182F430&410 | A182F304 | A182F304(L) | A182F316(L) |
4 | Stem | A182F6 | A182F304 | A182F304(L) | A182F316(L) |
5 | Gasket | Corrugated SS+graphite | SS+PTFE | ||
6 | Bonnet | A105 | A276f304 | A276F304(L) | A276F316(L) |
7 | Bonnet Bolt | A193B7 | A193B16 | A193B8 | A193B8M |
8 | Pin | A276420 | A276 304 | ||
9 | Gland | A276410 | A182F304(L) | A182F316(L) | |
10 | Gland Eyebole | A193B7 | A193B16 | A193B8 | A193B8M |
11 | Gland Flange | A105 | A182F11 | A182F304(L) | A182F316(L) |
12 | Gland Nut | A1942H | A1944 | A1948 | A1948M |
13 | Yoke Nut | A276420 | |||
14 | H.W.Lock Nut | A1942H | A1944 | A1948 | A1948M |
15 | Nameplate | SS | |||
16 | Hand wheel | A197 | |||
17 | Bearing Gasket | A473431 |
| ||
18 | Stem Packing | Flexible | PTFE | ||
Suitable Medium | W.O.G.etc | W.O.G.etc | HNO 3 ,CH 3 OOH etc | ||
Suitable Temperature | 29~425 degrees Celsius | 29~550 degrees Celsius | 29~200 degrees Celsius | ||
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee
