API Standard Rising Stem Globe Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China API standard rising stem globe valve, api globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API Standard Designed W.O.G application Cast Steel......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China api standard rising stem globe valve, api globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API Standard Designed W.O.G application Cast Steel...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China api standard rising stem globe valve, api globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

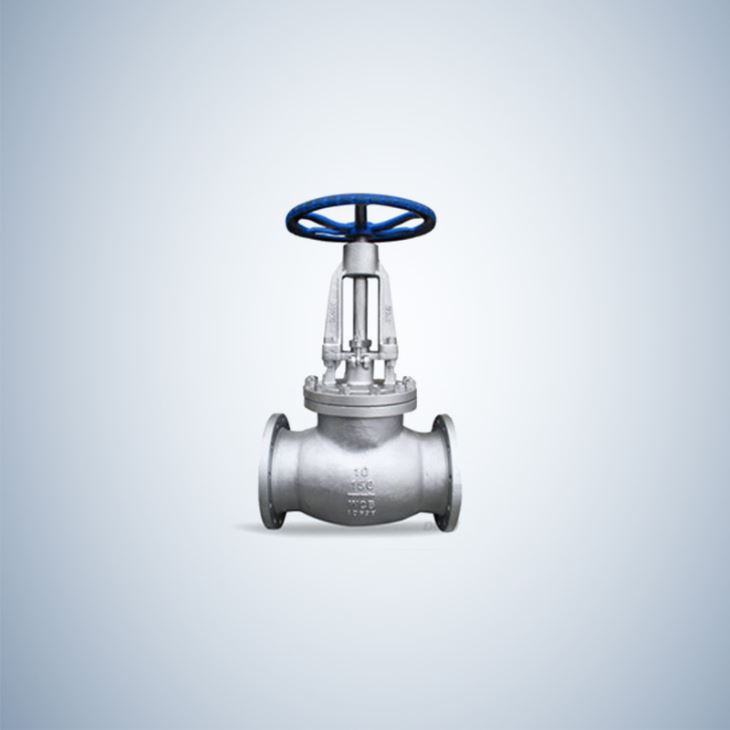

API Standard Designed W.O.G application Cast Steel Bolted Bonnet Globe Valve
Product Specifications :
Technical Parameters:
Globe Valve Design Standard | BS1873 |
Valve Standard | ASME B16.34 |
Face to Face Standard | ASME B16.10 |
Flange End Standard | ASME B16.5 |
Butt Welding Ends Standard | ASME B16.25 |
Inspection and Test Standard | API 589 |
Parts Material:
No. | Part Name | ASTM Material | ||
Carbon Steel | 1 1/4 Cr-1/2 Mo | Carbon Steel | ||
1 | Body | A216-WCB | A217-WC6 | A352-LCB |
2 | Bonnet | A216-WCB | A217-WC6 | A352-LCB |
3 | Disc | A105+CR13 | A182-F11+HF | A350-LF2+CR13 |
4 | Stem | A182-F6a | CR-MO-V | A182-F6a |
5 | Seat Ring | A105+CR13 | A182-F11+HF | A350-LF2+CR13 |
6 | Stem Back Seat | A276-420 | A276-304 | A276-420 |
7 | Bonnet Gasket | Graphite+304 | ||
8 | Bonnet Stud Bolt | A193-B7 | A193-B16 | A320-L7 |
9 | Bonnet Stud Nut | A194-2H | A194-4 | A174-7 |
10 | Packing | Graphite | ||
11 | Gland | A276-420 | A276-304 | A276-420 |
12 | Gland Flange | A216-WCB | A217-WC6 | A352-LCB |
13 | Eye Bolt Pin | Carbon Steel | A276-420 | Carbon Steel |
14 | Eye Bolt | Carbon Steel | A193-B7 | Carbon Steel |
15 | Eye Bolt Nut | Carbon Steel | A194-2H | Carbon Steel |
16 | Yoke Sleeve | Aluminum-Bronze | ||
17 | Hand wheel | Malleable Iron |
Note: Other materials are available upon customer’s request
Our advantages:
1). Scale: 82,000.00 square meters non-dust workshop
2). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
3). R&D: owned valve research and design center with strong technical team.
4). The foundry is built to promise our raw material better before production.
5). Condition: good after sale service
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment : T/T, L/C, Western Union and PayPal
