SW Ends A105 Forged Gate Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China sw ends a105 forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service Products D escription : Shenyang EO Valve Co.,Ltd is a leading China sw ends...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China sw ends a105 forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China sw ends a105 forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

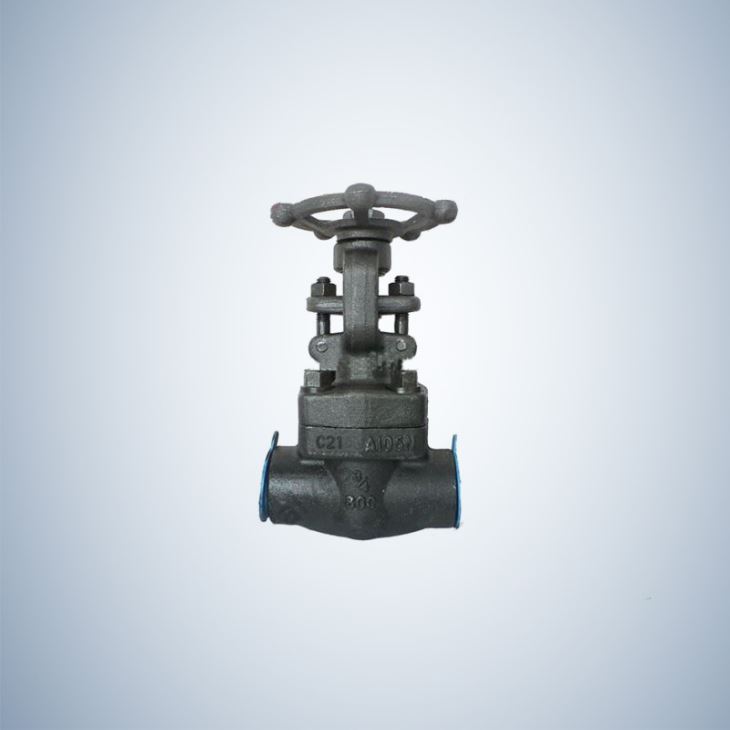

Socket Weld Ends Forged Steel Gate Valve
Product Specifications :
Standard:
·Design : API 602
·Face to face : ASME B 16.10
·End Flange : ASME B 16.5
·Butt welding ends : ASME B 16.25
·Socket Welding ends :ASME B 16.11
·Screw ends : ASME B 16.20.1
·Inspection and test : API 6D , API 598.
Design feature:
Size Range | NPS 1/4"~2" |
Class | 150LB~1500LB |
Material | A105,LF2,F11,F22,F304,F316,F304L,F316L |
Connection | Flanged,Socket Welded,Screwed,Butt Weld |
Feature | Rising Stem,bolted bonnet or welded bonnet or pressure seal bonnet. Full port or reduced port. |
Temperature | -30ºC~425ºC |
Actuator | Manual operated |
Application | Oil and gas pipeline |
Socket weld ends forged steel gate valve
Main Parts Material:
ITEM | PART NAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A105 | A350 LF2 | A182 F316 |
2 | SEAT | A105 | A350 LF2 | A182 F316 |
3 | WEDGE | A105 | A350 LF2 | A182 F316 |
4 | STEM | A182 F6 | A182 F304 | A182 F316 |
5 | GASKET | 304SS/316SS+GRAPHITE/SOFT CARBON STEEL/304SS/316SS METAL RING | ||
6 | BONNET | A105 | A350 LF2 | A182 F316 |
7 | BOLT | A193 B7/B7M | A320 L7/ L7M | A193 B8M |
8 | STEM PACKING | GRAPHITE / PTFE | ||
9 | GLAND | 276 410 | 276 410 | A276 316 |
10 | GLAND FLANGE | A105 | A350 LF2 | A182 F316 |
11 | GLAND NUT | A194 2H/2HM | A194 7/7M | A194 8 |
12 | EYEBOLT | A193 B7/B7M | A320 L7/L7M | A193 B8 |
13 | STEM NUT | A276 420 /Cu-ALLOY | ||
14* | HANDWHEEL | STEEL/ DUCTILE IRON | ||
* ELECTRICAL OPERATOR AND PNEUMATIC OPERATOR ARE AVAILABLE
NOTE: OTHER MATERIALS ARE AVAILABLE UPON REQUEST
Advantage:
1). Scale: 82,000.00 square meters non-dust workshop
2). The foundry is built to promise our raw material better before production.
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
5). Strict QC system is set up for the superior quality guarantee.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
