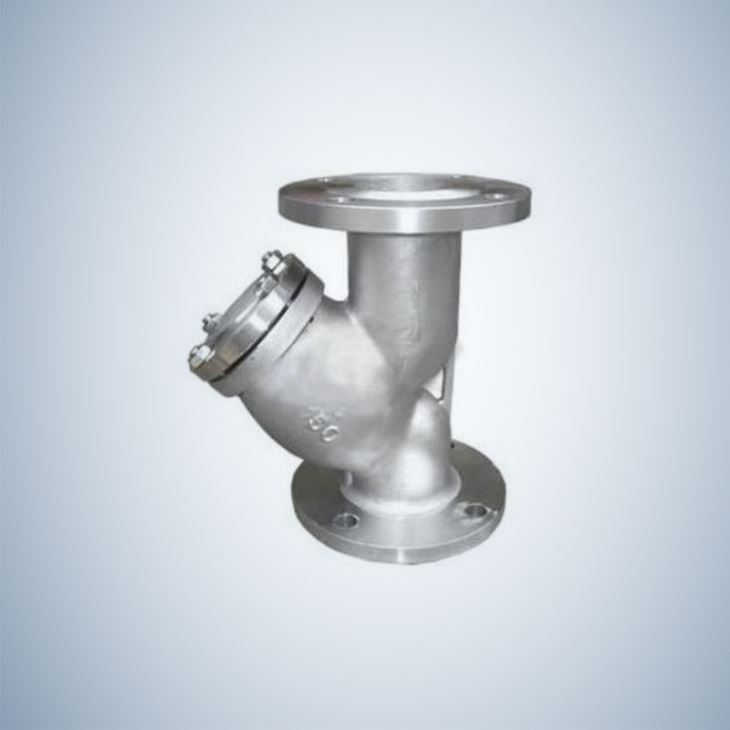

Y Strainer Stainless Steel 150Lb Y Filter

Y Strainer Stainless Steel 150Lb Y Filter

Products Details : Shenyang EO Valve Co.,Ltd is a leading China 150lb y filter manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China 150lb y filter...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China 150lb y filter manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 150lb y filter manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



API Standard Casting Flange Connection Y -Strainer .

Product Specifications :

1.Material:CF8/CF8M/CF3/CF3M/WCB/Cast Iron optional

2.Size:1/2"~ 36"

3.Pressure: Class150LB~Class1500LB

4.Design and Manufacture:ASME B16.34

5.Face to face and end to end:ASME B16.10

6.Pressure-temperature ratings:ASME B16.34

7.Inspection and Test:API598

8.Flange End:ASME B16.5,ASME B16.47A

9.BW End:ASME B16.25


MATERIAL LIST:

NO

PART NAME

CARBON STEEL

STAINLESS STEEL

1

BODY

A105

F304

F316

F316L

2

COVER

A105

F304

F316

F316L

3

NET

SS304

SS304

SS316

SS316L

4

FILLER

A105

SS304

SS316

SS316L

5

GASKET

PTFE,GRAPHITE

6

STUD BOLT

A193-B7

A193-B8


Strainer Design Features:
Stainless Steel Pipeline Y Strainer

For general chemical and industrial services

Working pressure: 800PSI

Medium: Water Oil Gas

Body material: CF8 CF8M

Perforated Screen

Body process: Investment casting process

Female Thread: NPT

Dimension: 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

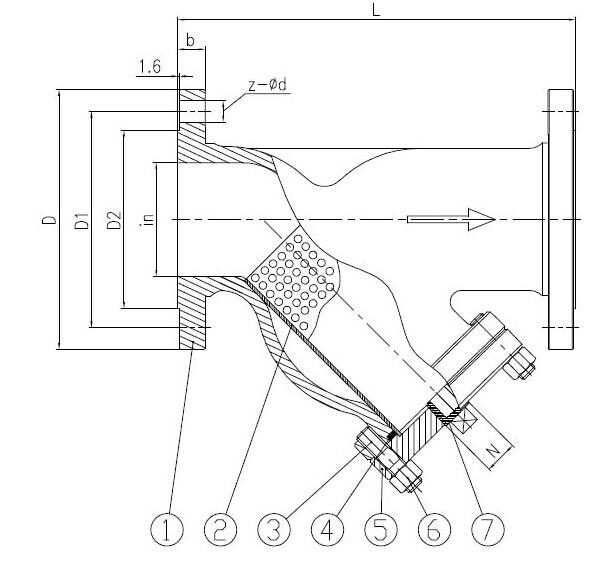

Technical Drawing:




Our Advantage:

1). Scale: 82,000.00 square meters non-dust workshop

2). The foundry is built to promise our raw material better before production.

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

5). Strict QC system is set up for the superior quality guarantee.



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
